Design wall light FISCHER SMALL 205x105 - 2-sided - polished stainless steel

Design wall light FISCHER SMALL 205x105 - 2-sided - polished stainless steel

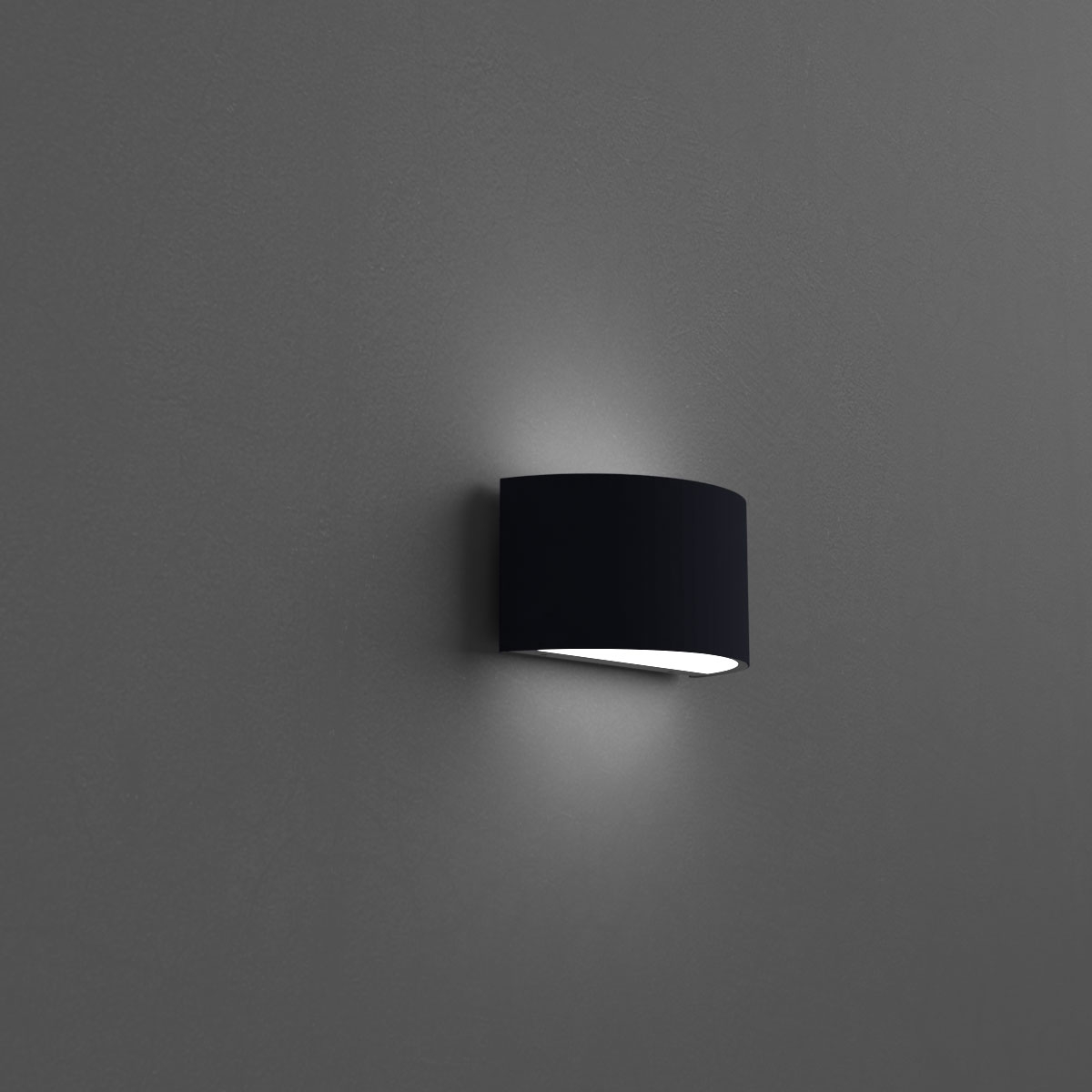

High-quality wall light for outdoor and indoor use made of polished stainless steel. This luminaire with warm white light color has a light outlet on both the top and bottom.

• The wall light is made of cast aluminum, stainless steel and ESG glass, opal.
• Integrated LED module 2 x 5.8 W incl. converter, direct connection 230 V, 50 Hz, light color warm white, 3000° K.
• Protective conductor connection.
• Protection class IP 44 - splash-proof.
• With cast aluminum mounting plate for fixing.

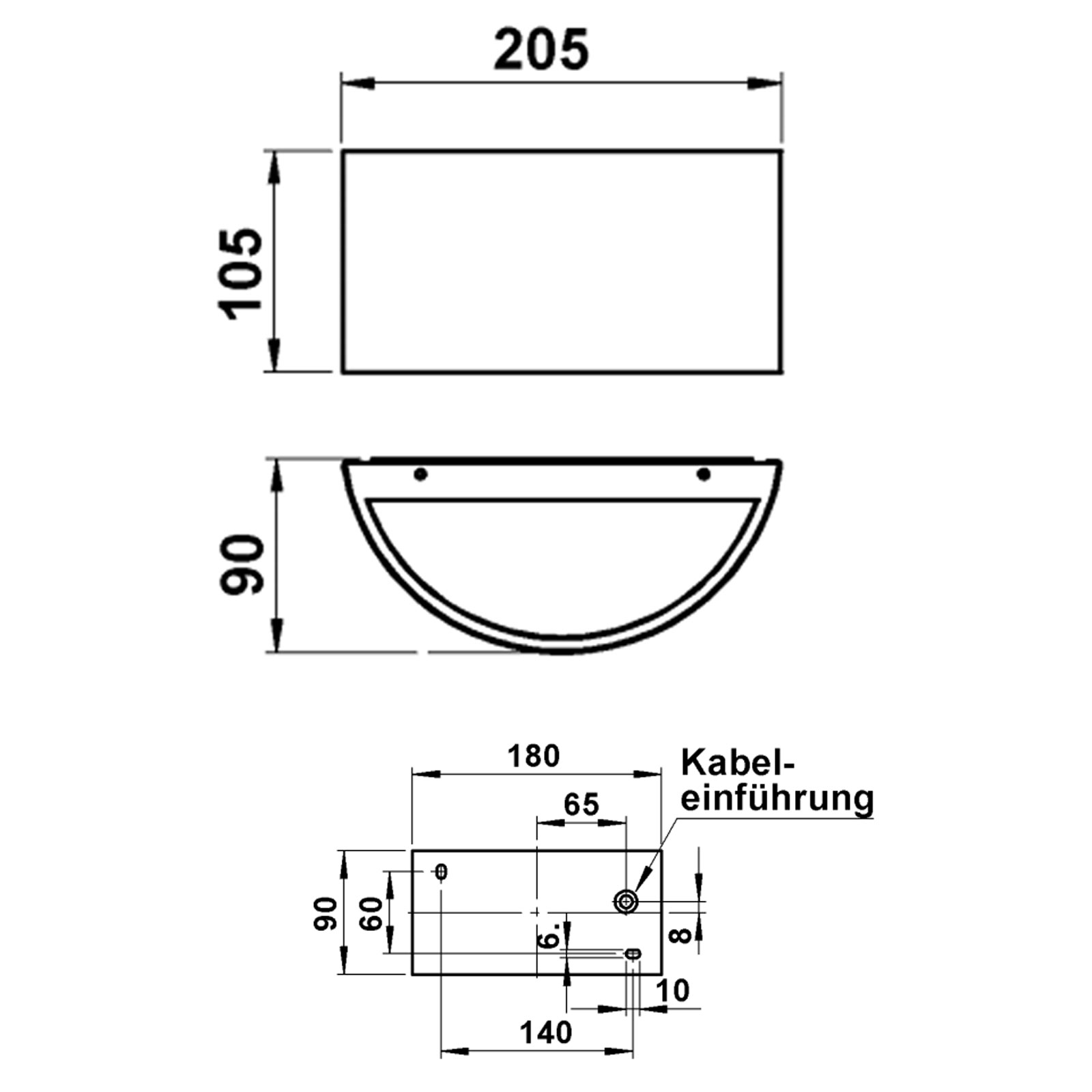

• 2 fixing holes 10x6 mm in the wall plate, vertical spacing 60 mm, horizontal spacing 140 mm, cable entry with cable grommet for connection cable max. 1.5 mm², connection terminal 2x2.5 mm².
• CE mark of conformity.
• Made by Gebrüder Albert GmbH & Co. KG Leuchtenfabrik - Quality Made in Germany (Fröndenberg).

Installation:

The national and international electronic safety regulations must be observed for the installation and operation of this luminaire. Loosen the wall plate from the luminaire fitting using the four hexagon socket grub screws, pull the mains connection cable through the existing cable grommet and screw the wall plate onto the mounting base Screw the wall plate onto the mounting base. Establish protective conductor connection and electrical connection to terminal. Fix the light fitting over the wall plate and tighten against it using the four hexagon socket set screws Against it using the four hexagon socket set screws.
