- After placing your order, you will receive an illustration so that your wishes can be realised down to the last detail. Your wishes will be considered in detail.
Can't find anything suitable? Configure your letterbox individually!

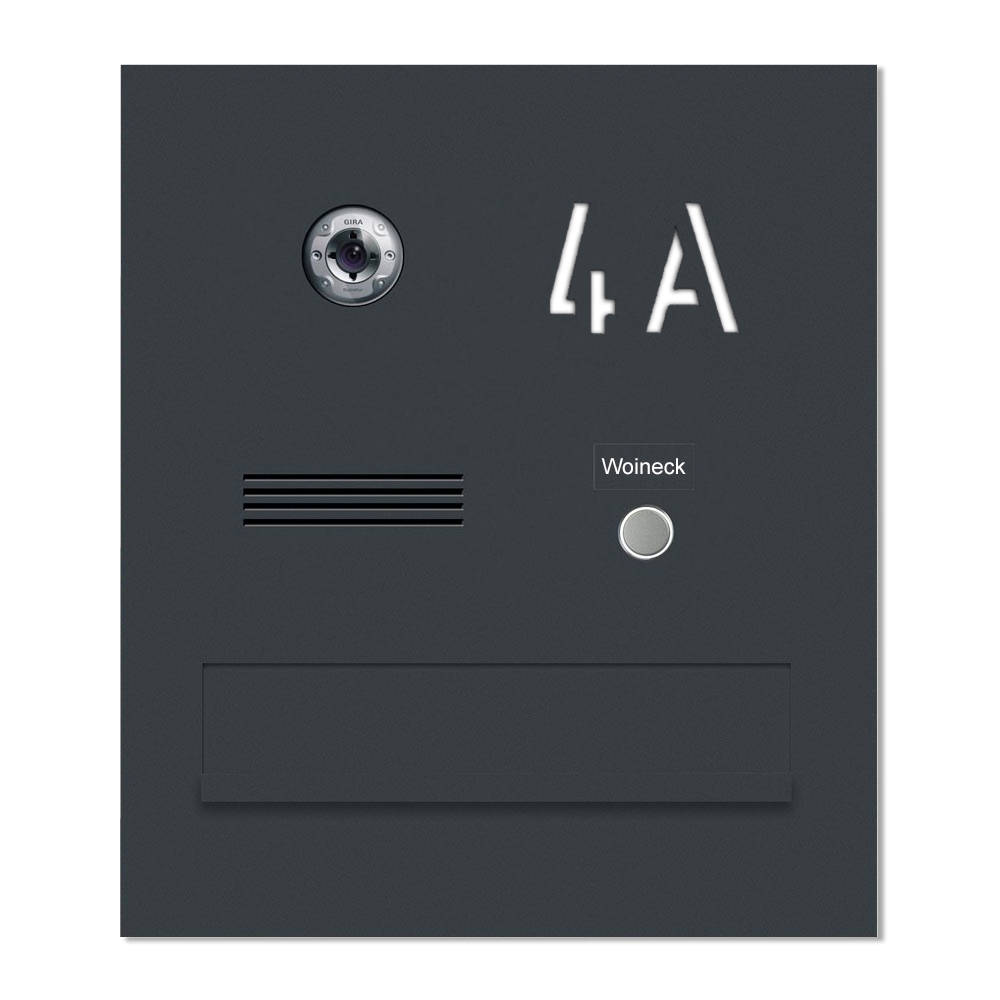

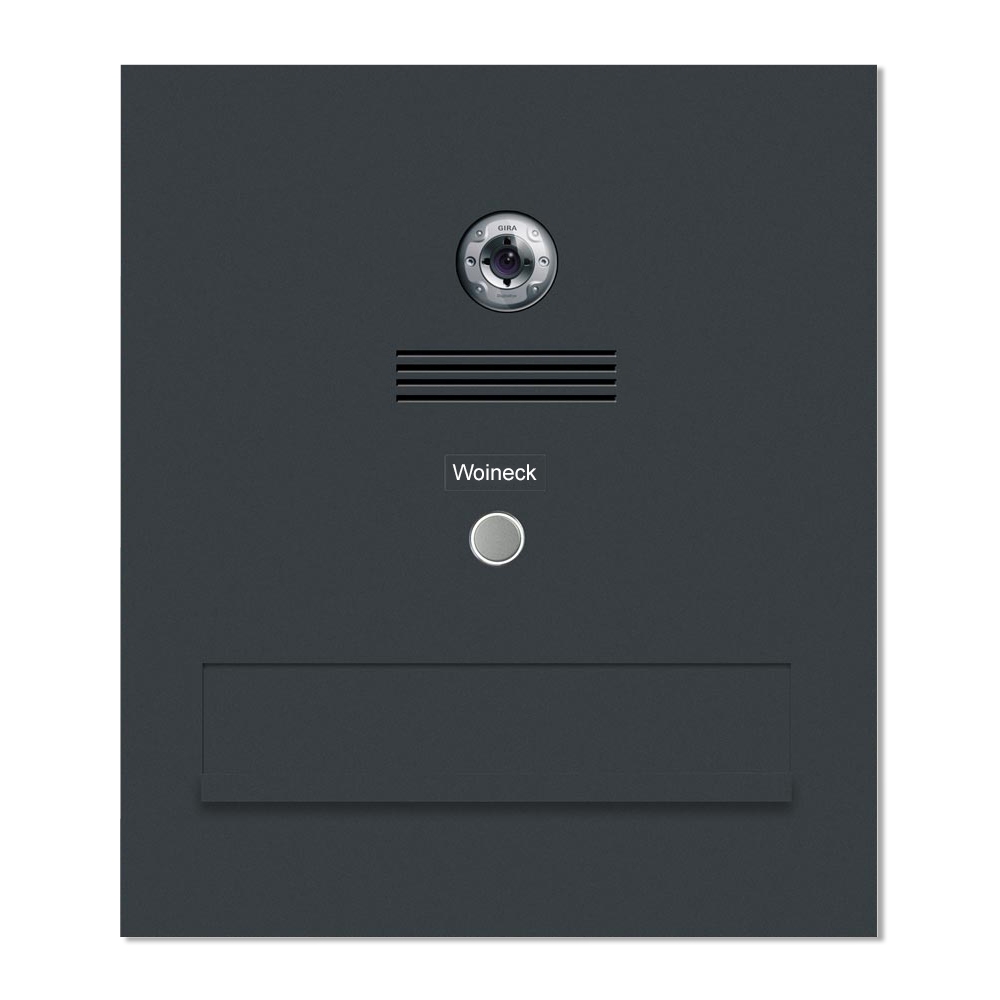

Stainless steel wall-mounted mailbox designer model - Clean Edition - RAL of your choice with bell - intercom - labelling - optional camera
High-quality, through-the-wall letterbox from Briefkasten Manufaktur. Due to the variable shaft length between 270mm and 400mm, this letterbox can be installed in almost all types of masonry. The post is removed from the rear. The front and rear stainless steel plates made of 2mm stainless steel V2A, powder-coated to RAL 7016 anthracite grey fine structure matt, can be invisibly attached to the wall thanks to the screw connection on the inside of the shaft. No fixing screws are visible.
A real eye-catcher among letterboxes. Clear lines and a no-frills design characterise the designer letterbox. Our products have a high quality, reliable functionality and their own identity. Made by Briefkasten Manufaktur.
- Designer stainless steel push-through letterbox made of 2 mm stainless steel V2A, powder-coated to RAL fine structure matt.
- Rear mail removal door 300x100mm, opens from left to right. Incl. 2 keys with key number.
- Mail slot from the front, dimensions: W 35 cm x H 6.3 cm, C4 landscape. Very large letters fit in here without creasing. Attention, no removal protection!
- Optionally with house number in polished look, attached.
- Replaceable stainless steel name plate with laser labelling.
- 8-12V DC short-stroke bell push with LED ring lighting (blue, white, red or green). The bell button lighting cannot be supplied via the control unit. It must be connected to an additional power supply.
- An 8-12V DC short-stroke light button with pictogram is available as an option.

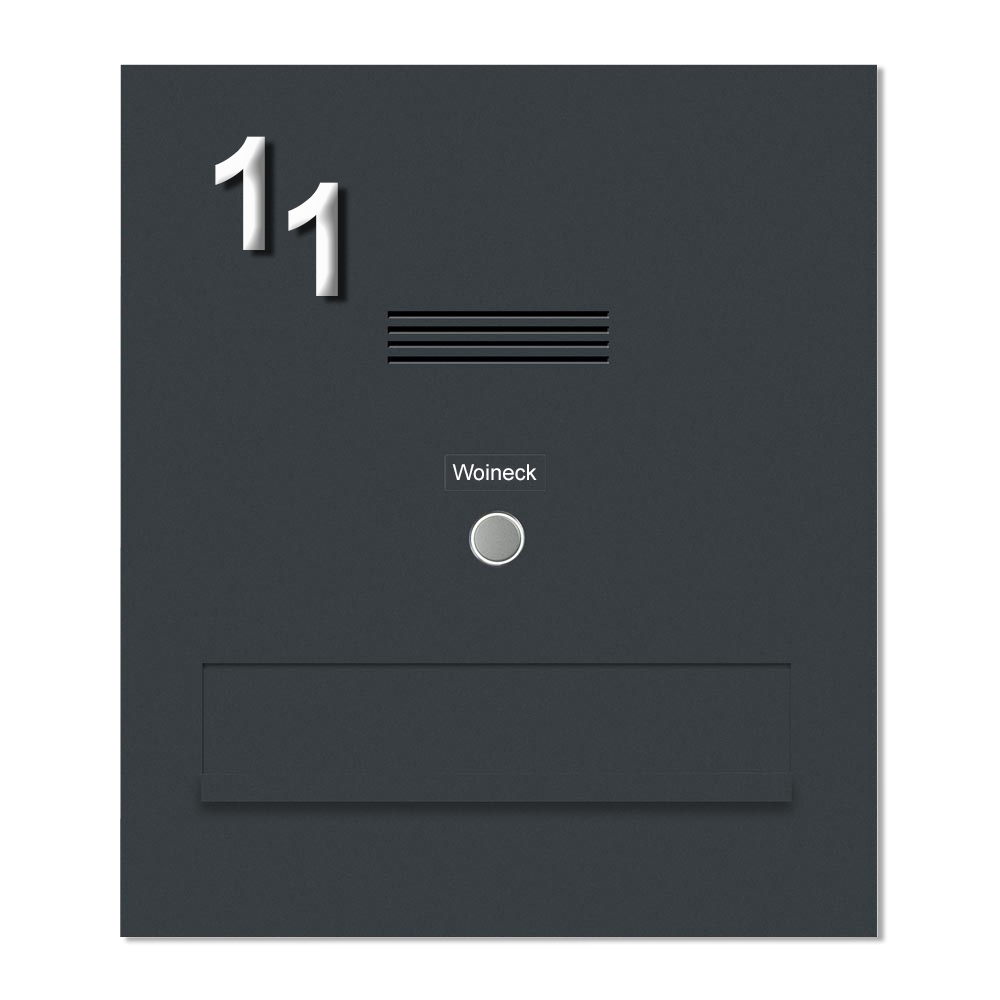

- Preparation (built-in loudspeaker not included) for intercom system possible.
- Optionally with universal adapter for all commercially available built-in loudspeakers.
- Optional preparation (camera not included in scope of delivery) for a camera.
- Dimension front panel W 450mm x H 500mm.
- Cover plate dimensions with removal door W 450mm x H 250mm.
- Letter slot dimensions W 380 mm x H 210-280mm.

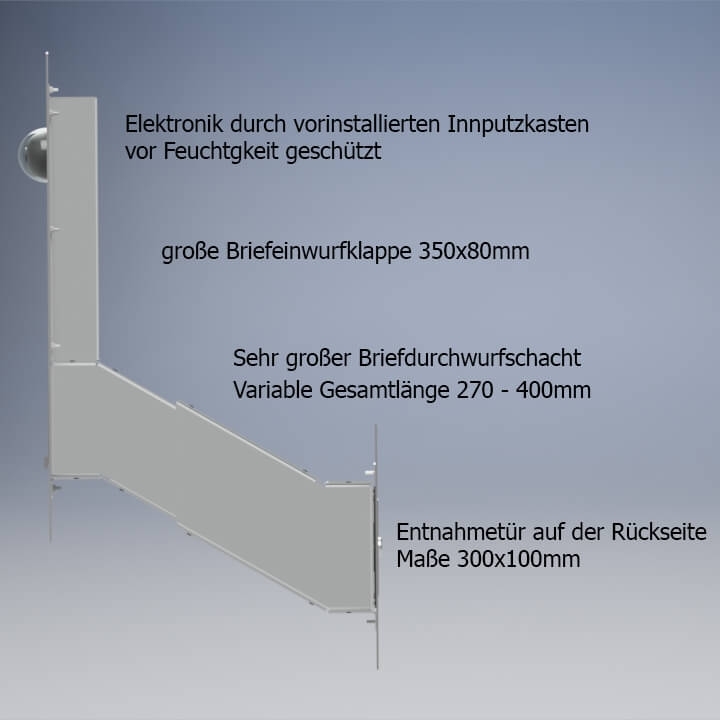

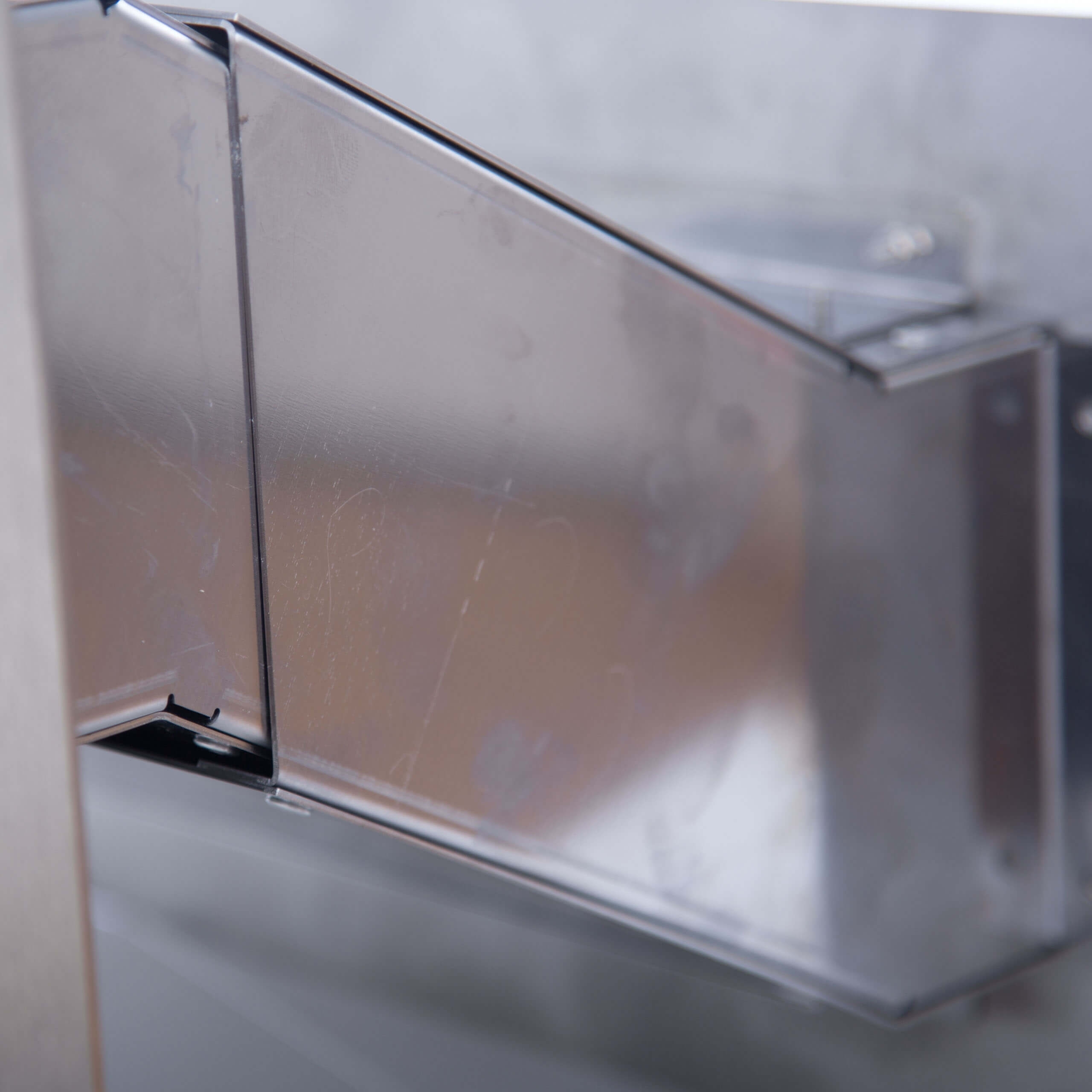

- Variable shaft length 270-400mm.
Camera or intercom preparation
We recommend that the electrical installation is always carried out by an electrician.
We offer the preparation of cameras and intercoms from various manufacturers for our letterboxes. The preparation does not include any end devices, but only the provision of screw mounts, drill holes and perforations. So that you can mount your end device without any problems.
Water protection
To achieve optimum water protection for your mail, the letterbox or letterbox system should be located under a canopy if possible.
The mail is only protected from water if it is fully inserted in the box and the flap is closed. Mail that is not fully inserted allows moisture and dirt to penetrate the letterbox. It is therefore necessary to plan sufficiently dimensioned letterboxes for the upcoming requirements. Under certain extreme weather conditions, water can still enter (up to 1ccm according to DIN EN 13724). This is not a reason for complaint.
| Material: | Stainless steel V2A 1.4301 |
|---|---|
| Number of letterboxes: | with 1 letterbox |
| Removal of mail: | On the back |
Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de
| Capacity in litres: | 21,0 | 31,0 |
|---|---|
| Height of letterbox slot in mm: | 63,0 |
| Width of letter slot in mm: | 350,0 |
| Depth in mm: | 270,0 - 400,0 |
| Weight in kg: | 32 |
| Delivery condition: | Supplied partially disassembled |
| Shipping information: | Depending on the order volume, delivery will be by parcel post or bulky goods. Partial deliveries are possible for dismountable products (e.g. stand mailboxes can be shipped separately). |
Order now
Accessories
The mailbox manufactory - tradition since 2003
At Briefkasten Manufaktur, you can order your letterbox, free-standing letterbox or letterbox system with countless customisations directly in the shop! Briefkasten Manufaktur only uses systems, components and individual parts from well-known manufacturers in Germany. But our customer service doesn't end with your order: After your order, you may receive a construction drawing by email as a PDF to realise your wishes down to the last detail. Your wishes will be considered in detail and, as a rule, even special requests that go beyond our configuration offer can be realised. After your production approval, your letterbox is customised and conveniently delivered by parcel post. Our customer service does not end here either, we ensure that the stainless steel letterboxes, letterbox systems, doorbells and lights are delivered to you in perfect condition with customised packaging.
And if you don't like a product you have purchased or something is not to your liking, you don't run any risk with us as a consumer. You can return our products within two weeks.
Letterboxes in over 80 colours
At Briefkasten Manufaktur, you can choose from over 80 colours or your desired RAL colour code. In addition to a wide range of colours, we also offer premium finishes for an even more attractive look.
Design letterboxes. Variability through customisation.
Every product at Briefkasten Manufaktur is customised and is only made by hand for you after you place your order. Many of our products can therefore be ordered directly in the shop with countless customisations. This is possible thanks to the modular structure, flexible prefabrication, warehousing and logistics. Individual components are already prefabricated so that very short delivery times can be achieved in some cases.
Simple installation thanks to well thought-out designs
Our letterbox systems are supplied with detailed and easy-to-understand documentation and assembly aids and are usually fully assembled within a very short time.
