€0.00*
Delivery time approx. 18-20 business days

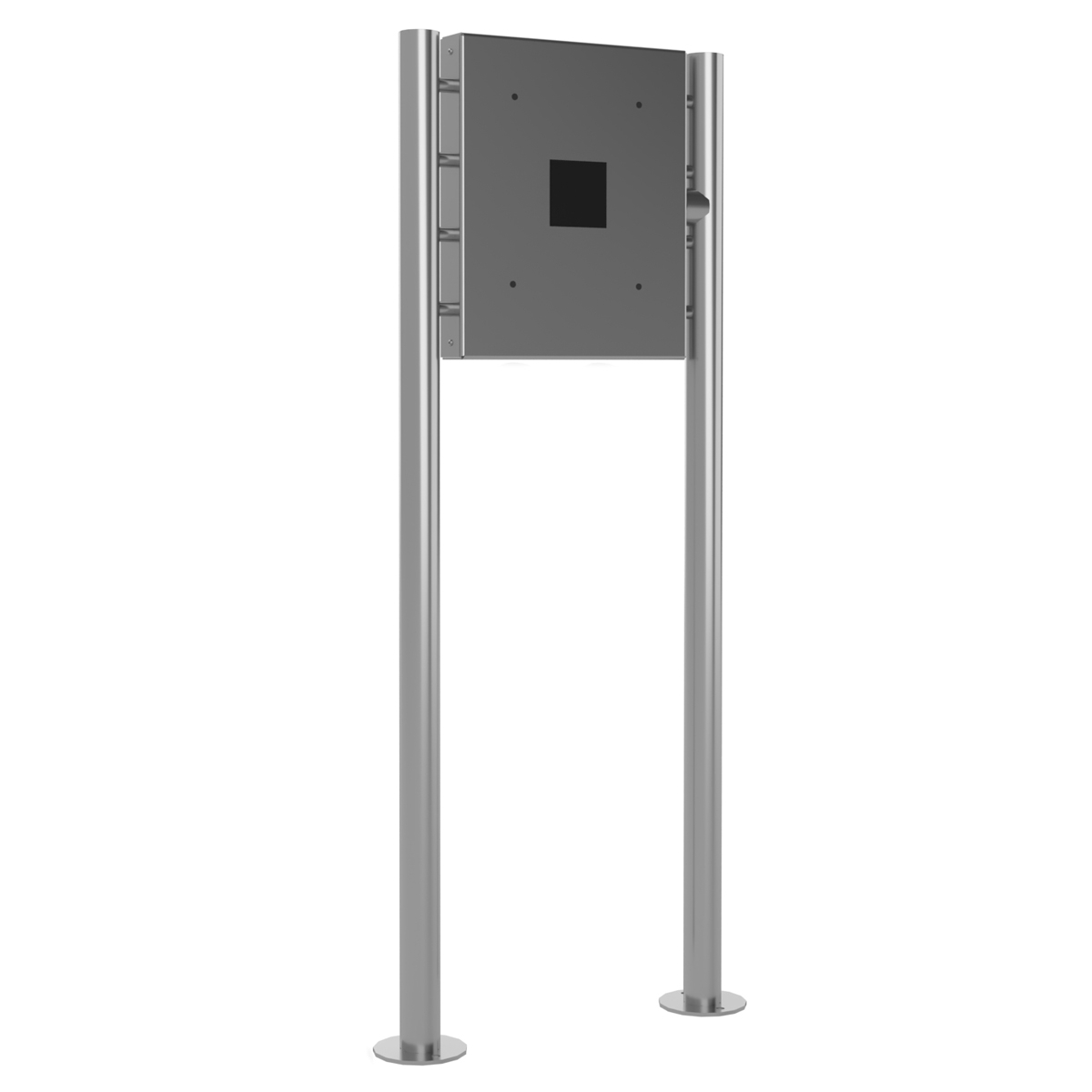

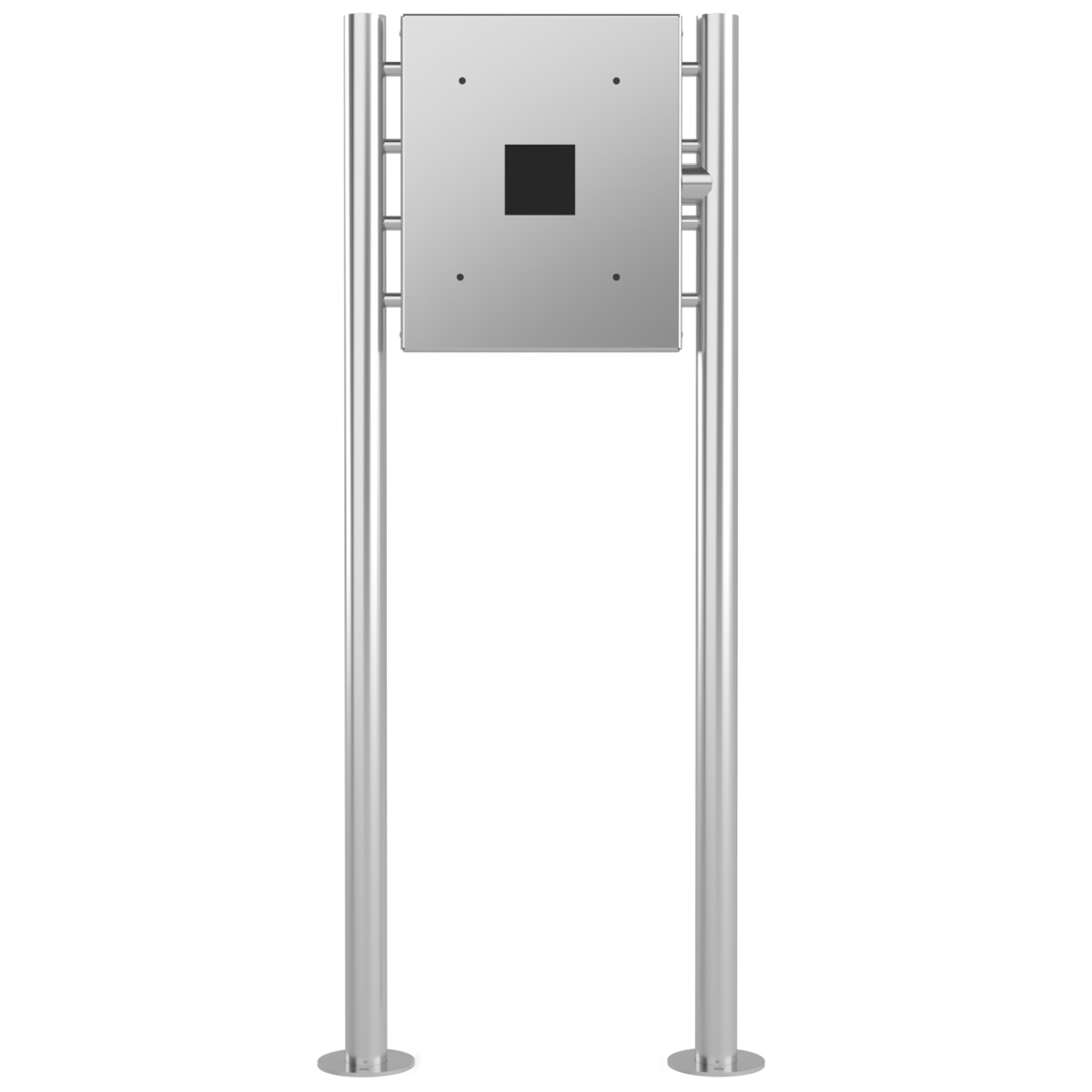

Stainless steel pedestal BASIC 605 ST-R - Wallbox prepared - Suitable for many wallbox manufacturers

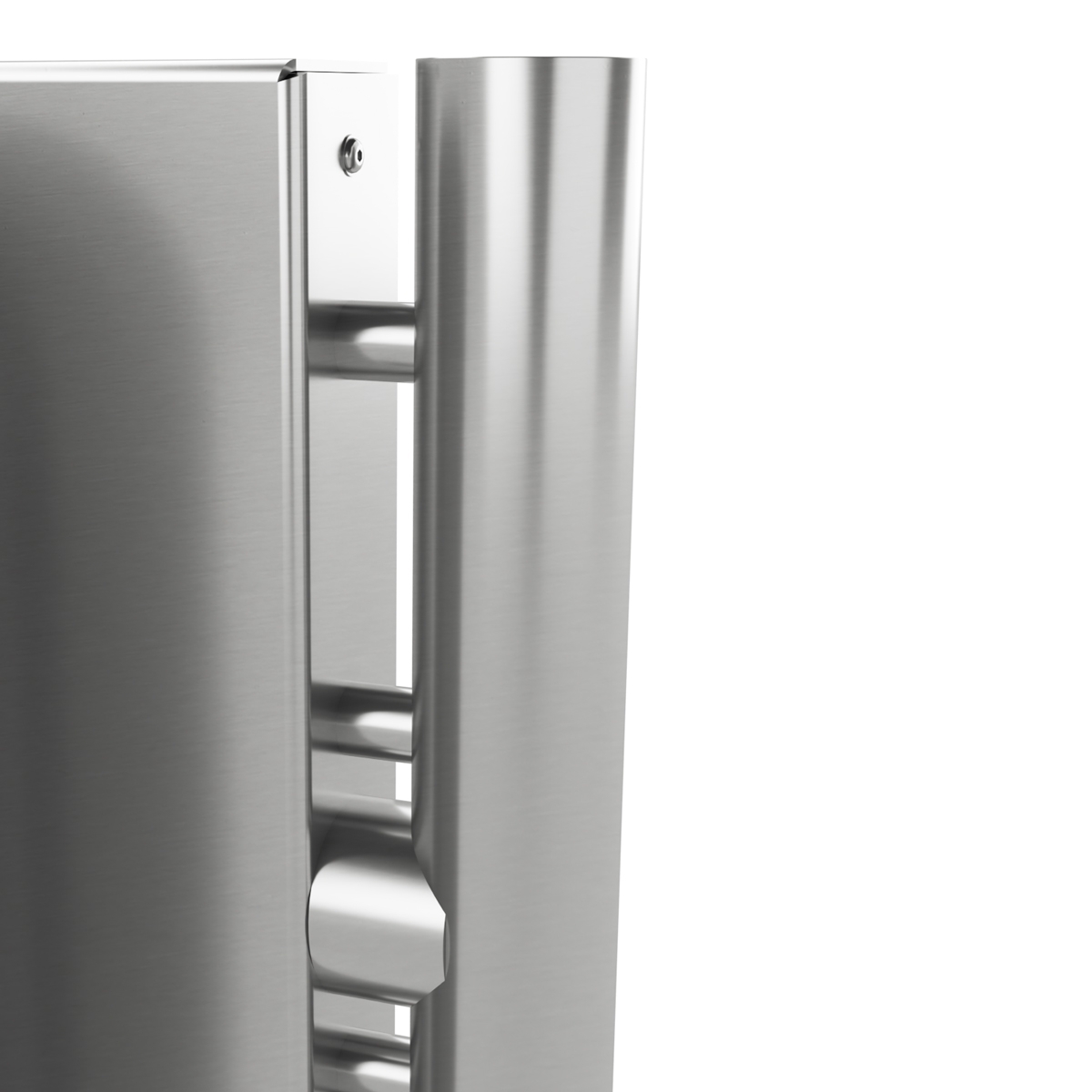

High-quality pedestal with elegant round tube pedestal elements. The pedestal is made entirely from stainless steel V2A 1.4301.
You will receive this pedestal with the appropriate mounting holes for your wallbox (wallbox is not included). The pedestal is equipped with a cable guide (front-facing right).
Thanks to the design, self-assembly is straightforward.
- High-quality pedestal made of stainless steel V2A 1.4301.
- Quality production - Made in Germany - Letterbox Manufaktur Lippe.
- Mounting plate made of 2 mm stainless steel V2A 1.4301 optionally ground or powder-coated in RAL colour of your choice.
- Mounting plate with side fixing screws.
- Invisible cable feed possible through the stand elements (front-facing right).
- Maximum bending radius 180mm, suitable for e.g. cable type: NYY-J 5x2.5mm², NYM-J 5x2.5mm², H07RN-F 5x2.5mm².
- The pedestals are made of 60.3 mm stainless steel V2A 1.4301, polished for screw mounting or setting in concrete.
- WITHOUT wallbox!
| Material: | Stainless steel V2A 1.4301 |
|---|
Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de
| Overall height in mm: | 1200,0 | 1500,0 | 1700,0 |
|---|---|
| Total width in mm: | 565,0 |
| Depth in mm: | 65.0 (without wallbox) |
| Weight in kg: | 15 |
| Delivery condition: | Supplied in blocks, stand elements/mounting plate divided |
| Shipping information: | Depending on the order volume, delivery will be by parcel post or bulky goods. Partial deliveries are possible for dismountable products (e.g. stand mailboxes can be shipped separately). |
