€0.00*
Delivery time approx. 18-20 business days
Can't find anything suitable? Configure your letterbox individually!

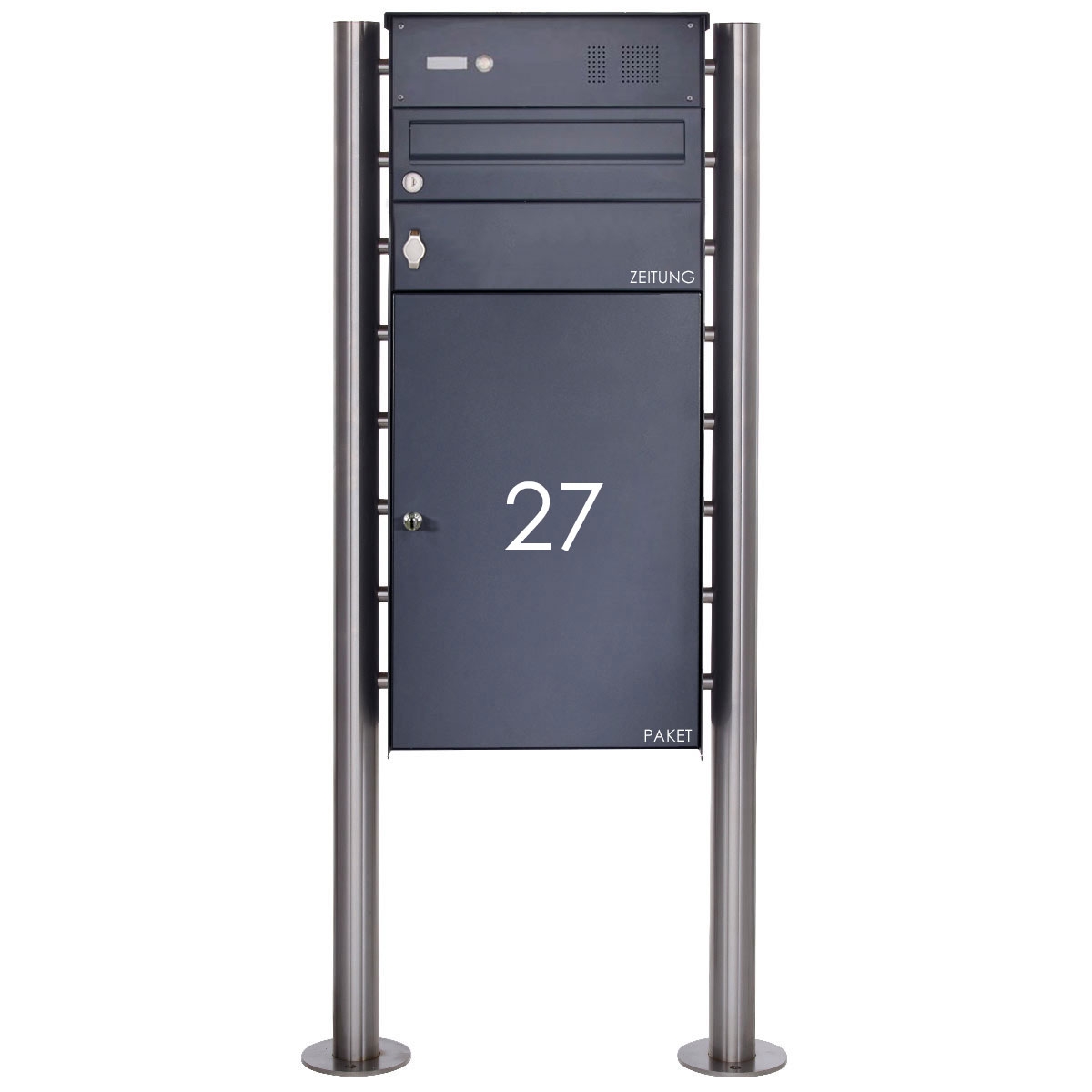

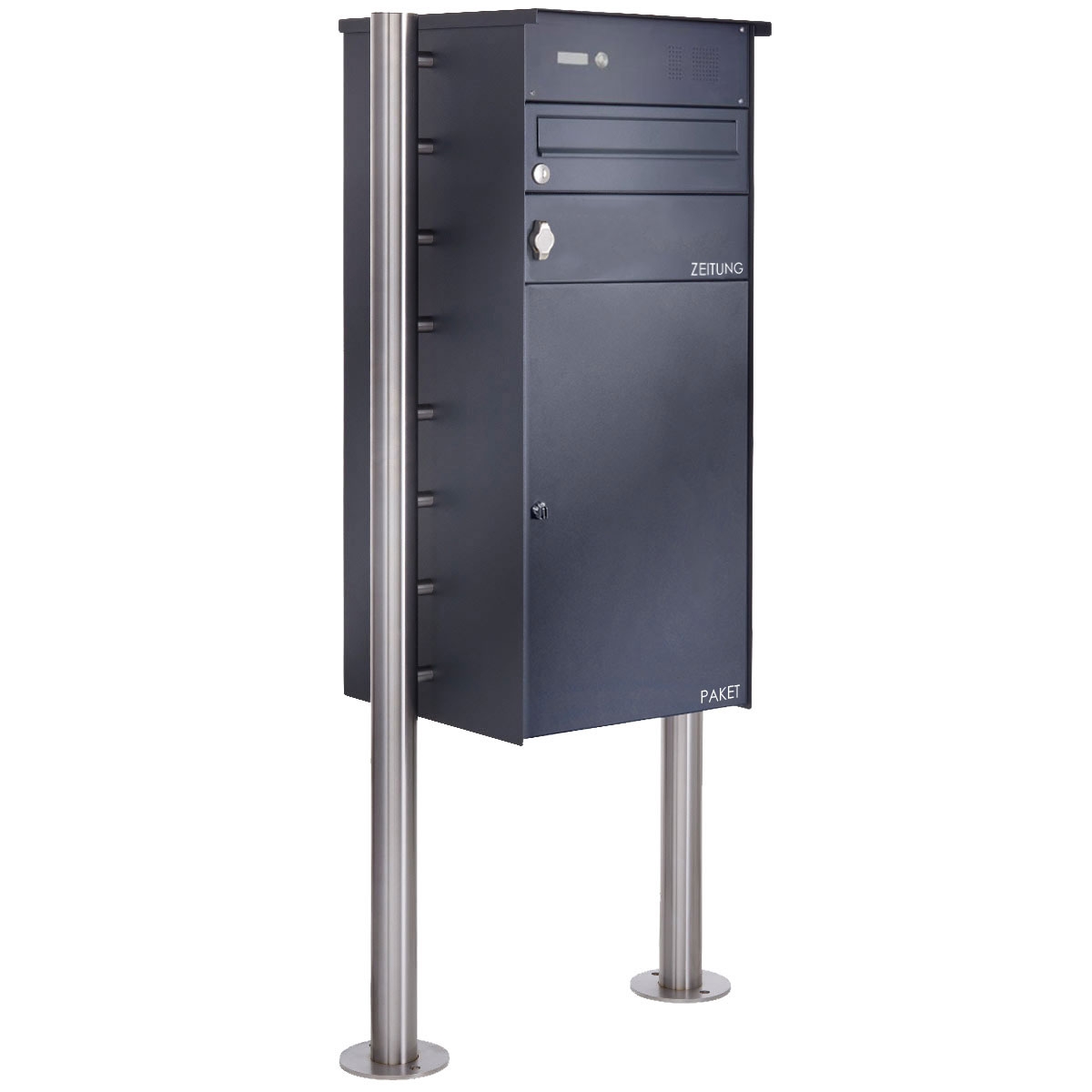

Stainless steel free-standing letterbox BASIC Plus 863X ST-R with bell box, newspaper compartment & parcel compartment 550x370 - RAL colour of your choice
The innovative BASIC parcel box with bell box for a doorbell intercom system (optional camera) and a closed newspaper compartment, now completely made of stainless steel powder-coated in RAL or DB colour and with a discreet parcel lock.
Parcel receipt independent of delivery person! Any parcel deliverer (e.g. DHL, DPD, TNT, GLS, Hermes, etc.) can use this parcel box. This parcel box is particularly suitable for large but few (usually 1 parcel per day) parcel consignments.
The parcel box is made of stainless steel V2A 1.4301, powder-coated in RAL colour, the stand elements are made of stainless steel V2A 1.4301, 240 grit polished. The very high-quality workmanship and the well thought-out concept make this letterbox system our top seller. A rain drainage edge for optimum water protection, a throw-in flap with rubber lip, the solid interchangeable nameplate and the robust lock characterise this free-standing letterbox. This letterbox is easy to clean and robust.
The letterbox systems in the BASIC Plus collection are characterised by the consistent use of V2A stainless steel. The result is a very long service life and sustainability. The design has been developed by our own engineers with a view to high flexibility and modularity, simple spare parts assembly and uncomplicated self-assembly. Spare parts are directly available for all BASIC Plus systems.
- Parcel letterbox made entirely of stainless steel V2A 1.4301 with body/letterbox/parcel compartment powder-coated in RAL colour of your choice

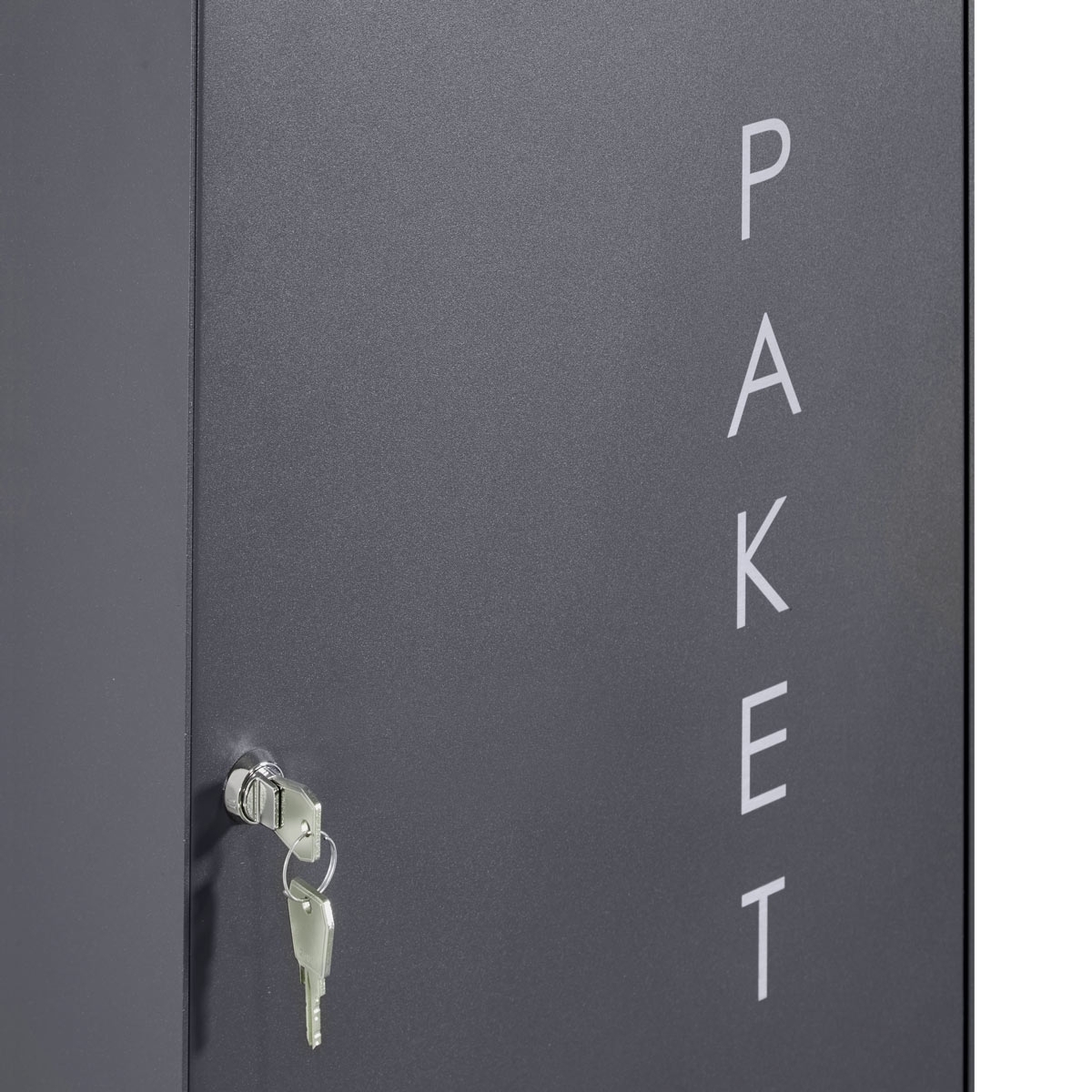

- Parcel compartment 370x550x385 mm (WD) incl. parcel lock with snap-in catch. Including stainless steel laser labelling "PAKET".
- Parcel compartment volume: 77 litres, max. Parcel size: 340 x 520 x 350 mm (WHT).
- Letterbox 370 x 110 x 385 mm (WHT). Removal from the front, the removal door can be opened from left to right.
- Newspaper compartment 370x110x385 mm (WD) with door and toggle lock, the removal door can be opened from left to right. Includes stainless steel laser labelling "ZEITUNG".

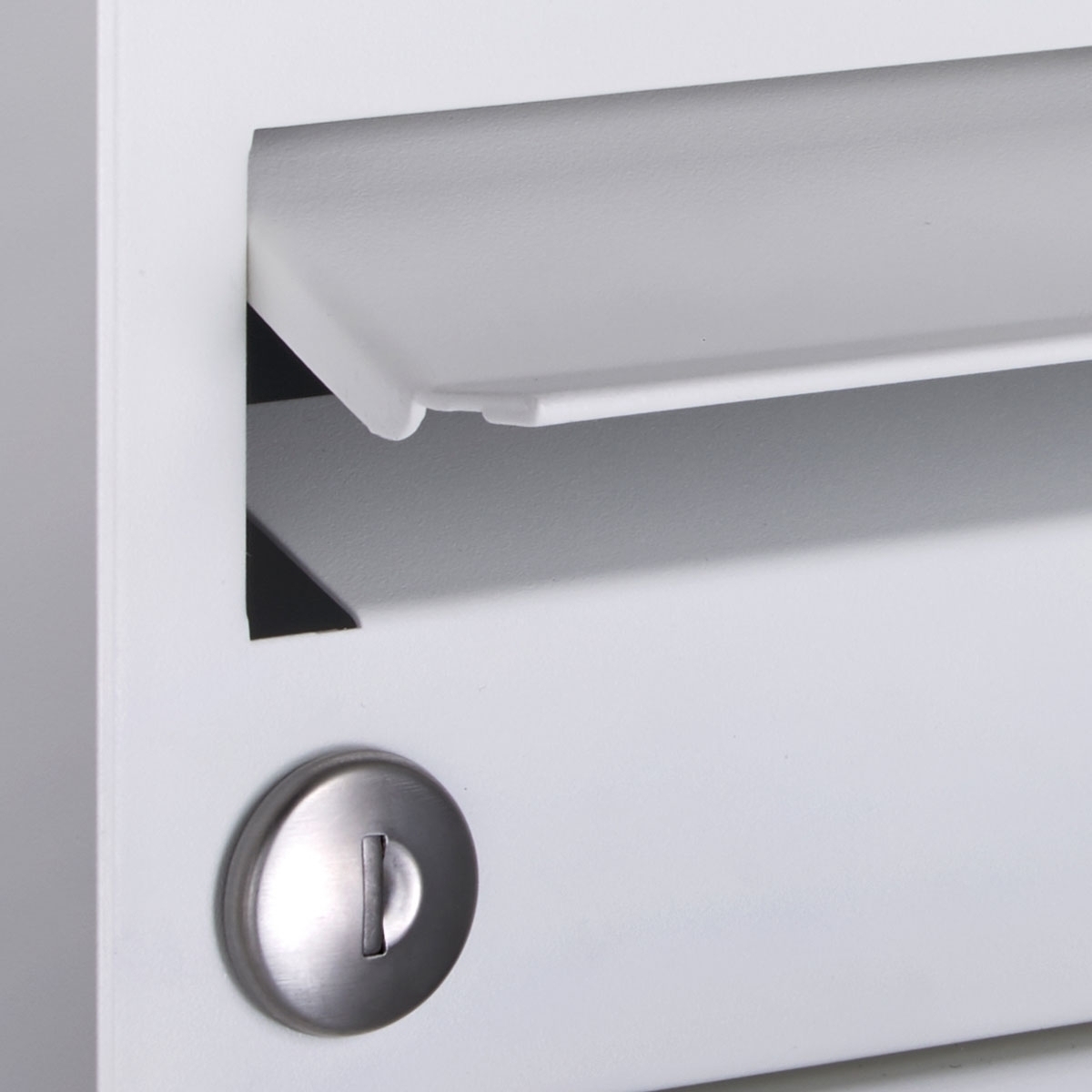

- C4 crosswise insertion from the front, even large letters fit in here without creasing. Insertion flap with rubber lip.
- DIN EN 13724 compliant.
- Includes 2 keys with key number per individual box and changeable name plate (type 2) under the flap.
- Optional house number labelling approx. 80-100 mm high.
- Close-fitting side panelling with integrated rain edge projecting forwards, roof plate folded over side plates made of 2 mm stainless steel V2A 1.4301, powder-coated.
- Bell box made of stainless steel V2A 1.4301, powder-coated in RAL colour of choice
- Speech perforation with universal adapter. (Intercom system/ built-in loudspeaker not included in the scope of delivery). Also available without speech perforation.
- Universal adapter is suitable for all commercially available built-in loudspeakers (Siedle, Ritto, TCS, Busch-Jäger, Gira, Legrand Bticino, ELCOM, Auerswald, Comelit and many more).
- Round stainless steel bell push button type: Grothe Protact, max. 24 V AC/DC, 1.5 A, IP 54 (pressure force limitation).
- Anti-vandalism - The nameplate is indentation-proof and impact-resistant, the plastic is flame-retardant.
- Cable access: Ø 14.0 mm (on the right-hand side). Invisible cable routing through the stand element.
- The stand elements are made of 60.0 mm stainless steel V2A 1.4301, polished for screw mounting or setting in concrete.
Important information:
The post is only protected from moisture and dirt when it is fully inserted and the flap is closed. Under certain extreme weather conditions, water can still get in (up to 1ccm according to DIN EN 13724). This is not a reason for complaint.
| Material: | Stainless steel V2A 1.4301 |
|---|---|
| Number of bell push buttons: | 1 button, 2 buttons, 3 buttons |
| Number of letterboxes: | with 1 letterbox |
| Removal of mail: | On the front |
Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de
| Height of single box in mm: | BK 110.0 | ZF 110.0 | PK 550.0 |
|---|---|
| Width of single box in mm: | BK 370.0 | ZF 370.0 | PK 370.0 |
| Capacity in litres: | BK 15.0 | ZF 15.0 | PK 77.0 |
| Height of letterbox slot in mm: | 35,0 |
| Width of letter slot in mm: | 325,0 |

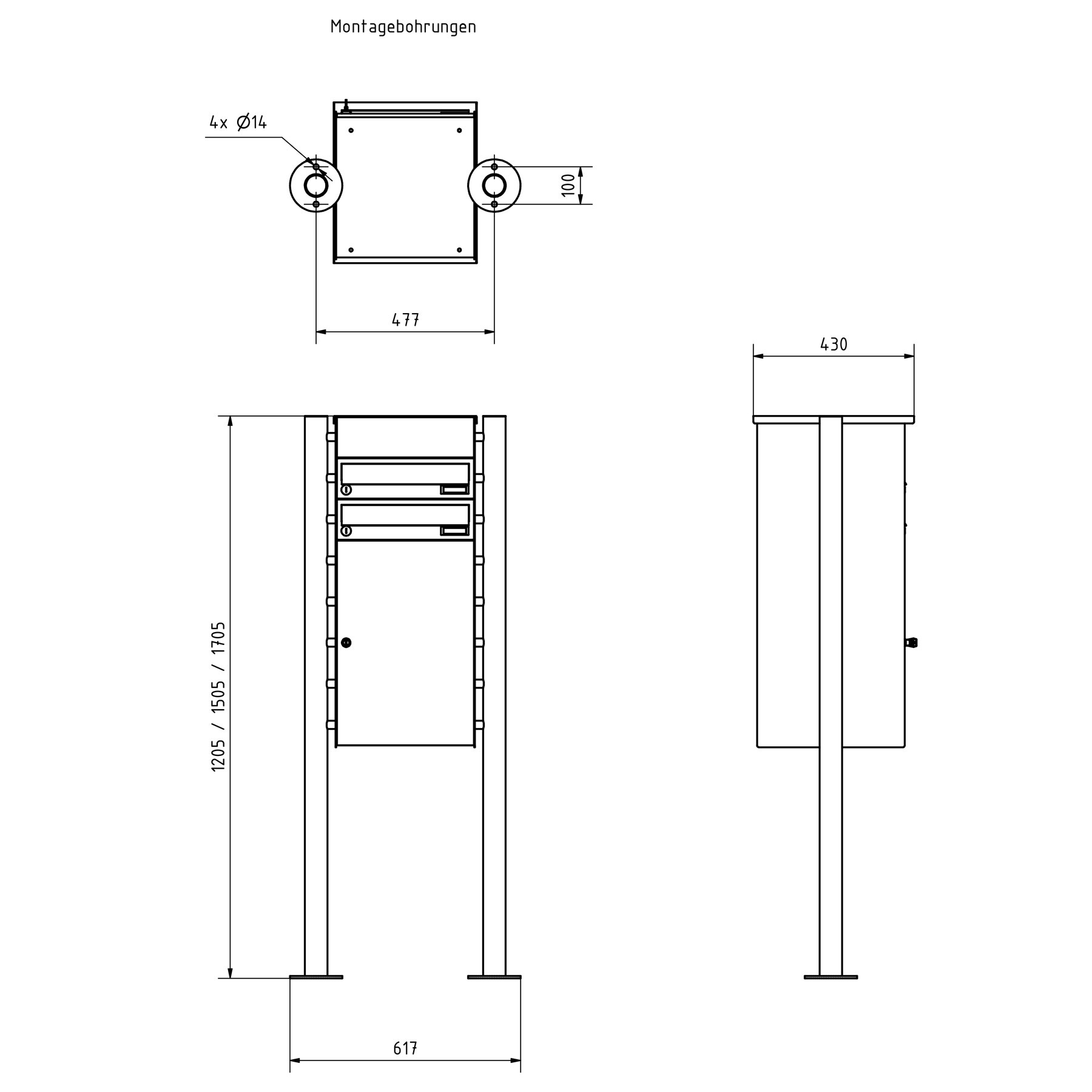

| Height of letterbox in mm: | 887,0 |
| Width of letterbox system in mm: | 380,0 |
| Overall height in mm: | 1200,0 | 1500,0 | 1700,0 |
| Total width in mm: | 530,0 |
| Depth in mm: | 390,0 |
| Weight in kg: | 41 |
| Delivery condition: | Supplied in blocks, stand elements / letterbox divided |
| Shipping information: | Delivery by haulage company on a one-way pallet. Before delivery, the forwarding agent will contact you by telephone to arrange an appointment. |
How does the parcel lock work?
Our new innovative lock for parcel lockers or similar applications. Includes 5 keys per lock.
The lock offers a unique, innovative, mechanical solution in which the owner can release a one-time opening with the key. If the owner of the parcel locker has used this function and the parcel deliverer opens the lock, it is locked internally at the same time.
A second opening is then no longer possible.
Order now
Accessories
More varieties
The mailbox manufactory - tradition since 2003
At Briefkasten Manufaktur, you can order your letterbox, free-standing letterbox or letterbox system with countless customisations directly in the shop! Briefkasten Manufaktur only uses systems, components and individual parts from well-known manufacturers in Germany. But our customer service doesn't end with your order: After your order, you may receive a construction drawing by email as a PDF to realise your wishes down to the last detail. Your wishes will be considered in detail and, as a rule, even special requests that go beyond our configuration offer can be realised. After your production approval, your letterbox is customised and conveniently delivered by parcel post. Our customer service does not end here either, we ensure that the stainless steel letterboxes, letterbox systems, doorbells and lights are delivered to you in perfect condition with customised packaging.
And if you don't like a product you have purchased or something is not to your liking, you don't run any risk with us as a consumer. You can return our products within two weeks.
Letterboxes in over 80 colours
At Briefkasten Manufaktur, you can choose from over 80 colours or your desired RAL colour code. In addition to a wide range of colours, we also offer premium finishes for an even more attractive look.
Design letterboxes. Variability through customisation.
Every product at Briefkasten Manufaktur is customised and is only made by hand for you after you place your order. Many of our products can therefore be ordered directly in the shop with countless customisations. This is possible thanks to the modular structure, flexible prefabrication, warehousing and logistics. Individual components are already prefabricated so that very short delivery times can be achieved in some cases.
Simple installation thanks to well thought-out designs
Our letterbox systems are supplied with detailed and easy-to-understand documentation and assembly aids and are usually fully assembled within a very short time.
