€239.00*
Delivery time approx. 15 - 19 business days
Type 2 / Type 2 charging cable - length 7m - 3 phases - 32A - Mode 3

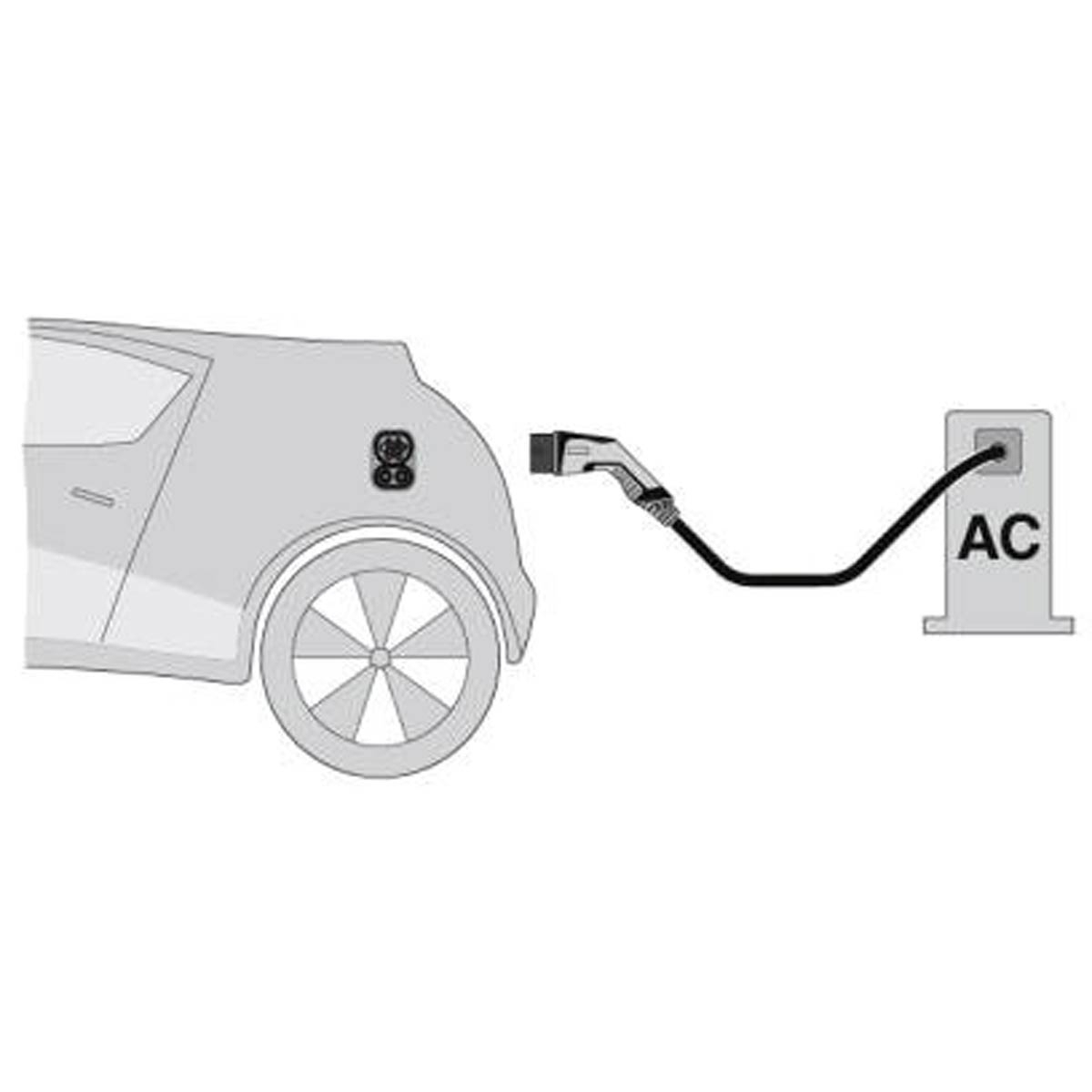

Safe and fast: With the PHOENIX CONTACT Mode 3 Type 2 / Type 2 charging cable, you can charge your electric car with up to 22 kilowatts - at your own wallbox or on the road at a public charging station. The type 2 connection has now become established for most electric vehicle models sold in Germany.
The two type designations stand for the plugs of the eCable. The type 2 plug belongs in the charging station or charging box, the other type 2 plug must be suitable for connecting your electric car. The three-phase plug is EU standard and has a maximum charging capacity of 22 kilowatts.
- Compatible with charging points with a type 2 socket throughout Europe
- Full flexibility with 7 metre cable length
- Made in Germany
Technical specifications
- Cable length: 7.0 metres
- Colour: black/grey
- For all electric cars and plug-in hybrids with type 2 plug (European standard: IEC 62196-2).
- Plug infrastructure side: IEC type 2 plug (male) in accordance with DIN EN 62196-2; 1p+N+PE and signal contacts PP+CP

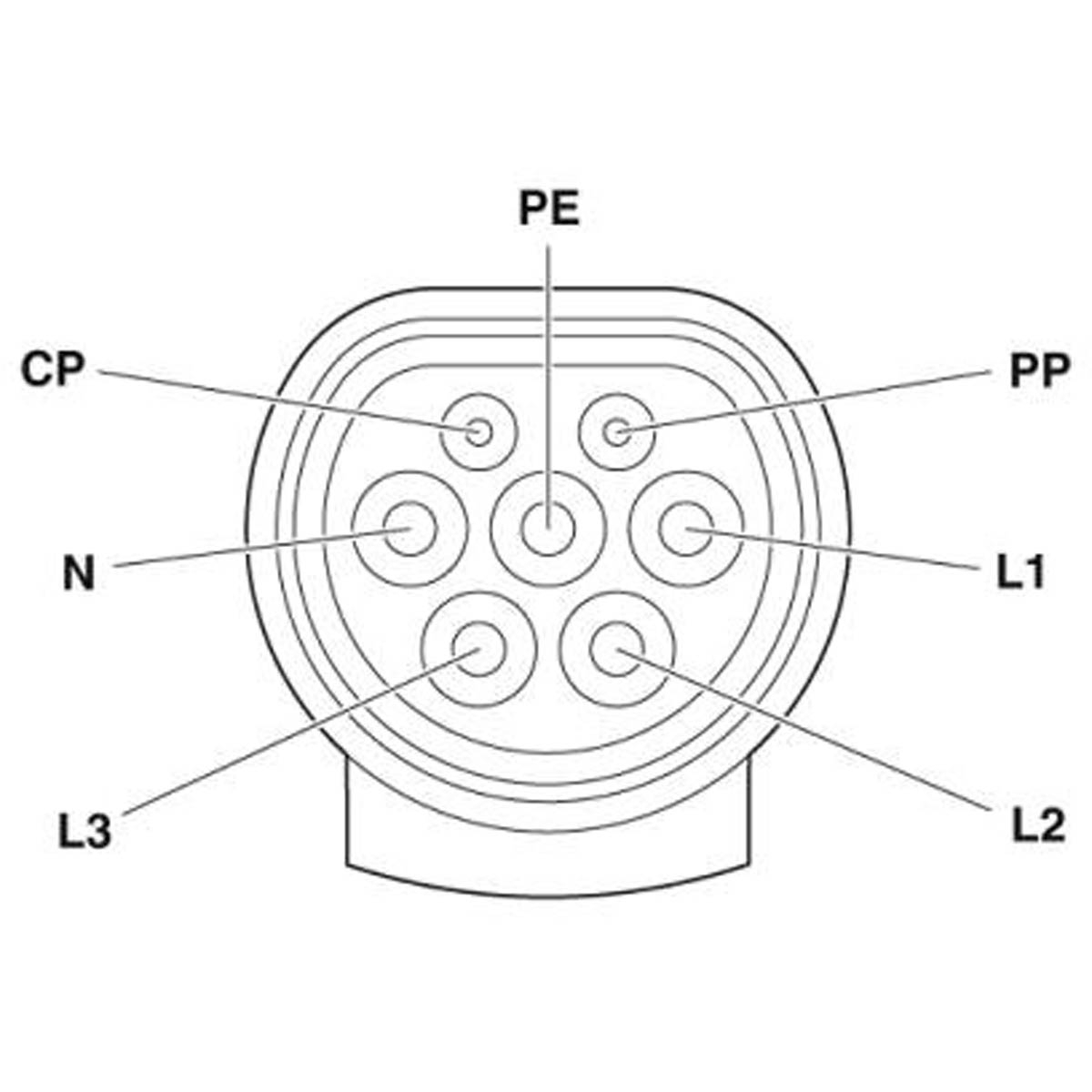

- Connector vehicle side: IEC type 2 plug (female) in accordance with IEC/DIN EN 62196-2; 3p+N+PE and signalling contacts PP+CP
- Power: Three-phase current 480 V AC, three-phase, max. 32A, max. 26.6 kW
E-cars with type 2 connection (as of 03/2020)
- BMW i3
- BYD e6
- Mercedes Benz B250e
- Hyundai ioniq
- Opel Ampera-e
- Renault ZOE
- Renault Kangoo Z.E.
- Smart ED BR453 (Coupé, Forfour, Cabrio)
- Tesla Model S
- Tesla Model X
- Volkswagen eGolf (2017)
- Volkswagen eUp
| Cable length: | 15,0m |
|---|---|
| Charging connection: | Type 2 socket |
| Max. charging power: | 22kW |
| Nominal current: | 16 … 32 A, 16A |
| Phases: | 1, 3 |
Flachsmarktstraße 8
32825 Blomberg
Deutschland
info@phoenixcontact.de
| Weight in kg: | 7,5 |
|---|---|
| Shipping information: | Depending on the order volume, delivery will be by parcel post or bulky goods. Partial deliveries are possible for dismountable products (e.g. stand mailboxes can be shipped separately). |
