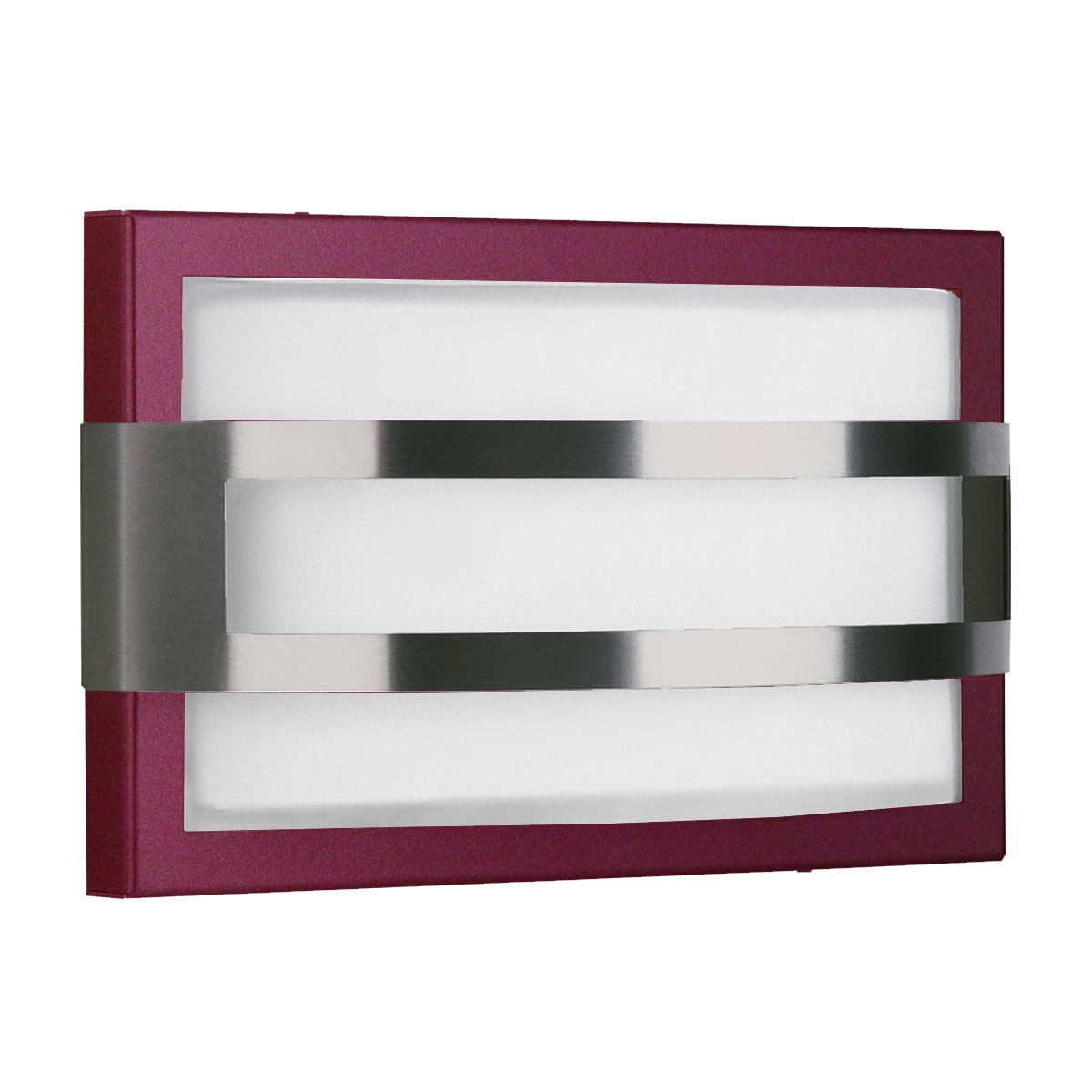

Design wall light ZUSE 280x180 bi-colour - polished stainless steel - RAL of your choice
High-quality wall light for indoor and outdoor use in bicolour RAL colour of your choice and polished stainless steel.
- The wall light is made of cast aluminium, stainless steel and pressed glass, opal.
- Frame in RAL/DB colour of choice, decorative cover in stainless steel, polished.
- Base E 27, suitable for lamps of energy classes A++ to E max. 57 W.
- Protective conductor connection.
- Protection class IP 44 - splash-proof.
- With cast aluminium mounting plate for fixing.

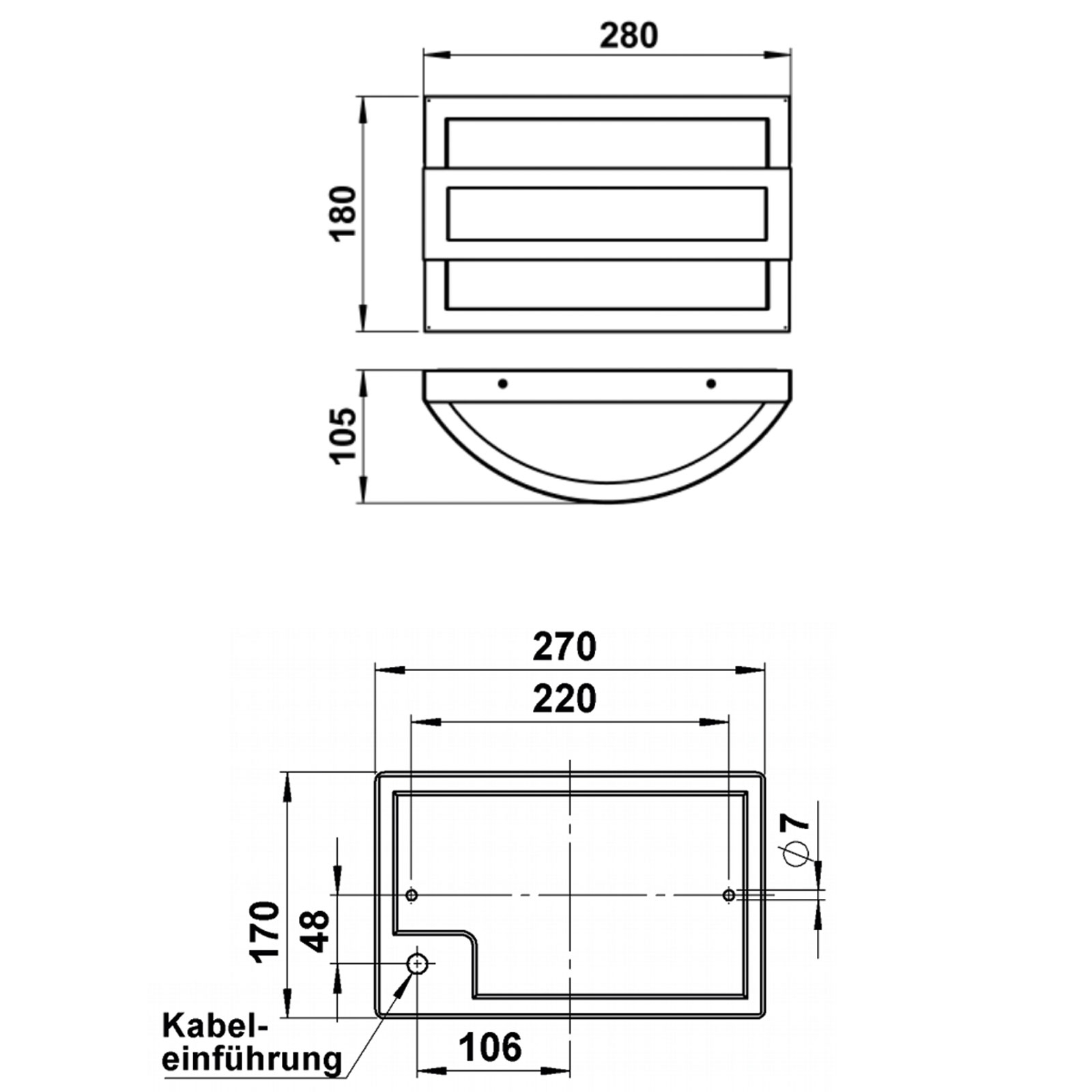

- 2 fixing holes 7mm, spacing 220mm, connection terminal 2 x 2.5mm².
- CE mark of conformity.
- Manufactured by Gebrüder Albert GmbH & Co KG Leuchtenfabrik - Quality Made in Germany (Fröndenberg).
Installation:
The national and international electronic safety regulations must be observed for the installation and operation of this luminaire. Use the four grub screws to remove the wall plate from the luminaire fitting. Feed the mains cable connection through the cable grommet and fix the wall plate to the mounting surface. Push the enclosed silicone hoses over the connecting wires. Establish the protective conductor connection and electrical connection at the terminal. Insert the light source and tighten the light fitting and glass to the wall plate using the grub screws.
| Illuminants: | ohne |
|---|---|
| Material: | Aluminium AlMg3 W19, Stainless steel V2A 1.4301 |
| Protection class: | I |
| Protection type: | IP44 |
| Width in mm: | 280 |
|---|---|
| Height in mm: | 180 |
| Depth in mm: | 105,0 |
| Delivery condition: | Supplied fully assembled |
| Shipping information: | Depending on the order volume, delivery will be by parcel post or bulky goods. Partial deliveries are possible for dismountable products (e.g. stand mailboxes can be shipped separately). |
