€469.00*
delivery time ca. 8-10 business days
Design wall light KEPLER MEDIUM 300x105 - 2-sided - polished stainless steel
High-quality wall light for outdoor and indoor use made of polished stainless steel. This luminaire with warm white light colour has a light outlet on both the top and bottom.
- The wall light is made of cast aluminium, stainless steel and opal glass.
- Integrated LED module 2 x LED 7.8 W incl. converter, direct connection 230V, 50Hz, light colour white, 3000°K.
- Protective conductor connection.
- Protection class IP 44 - splash-proof.
- With cast aluminium mounting plate for fixing.

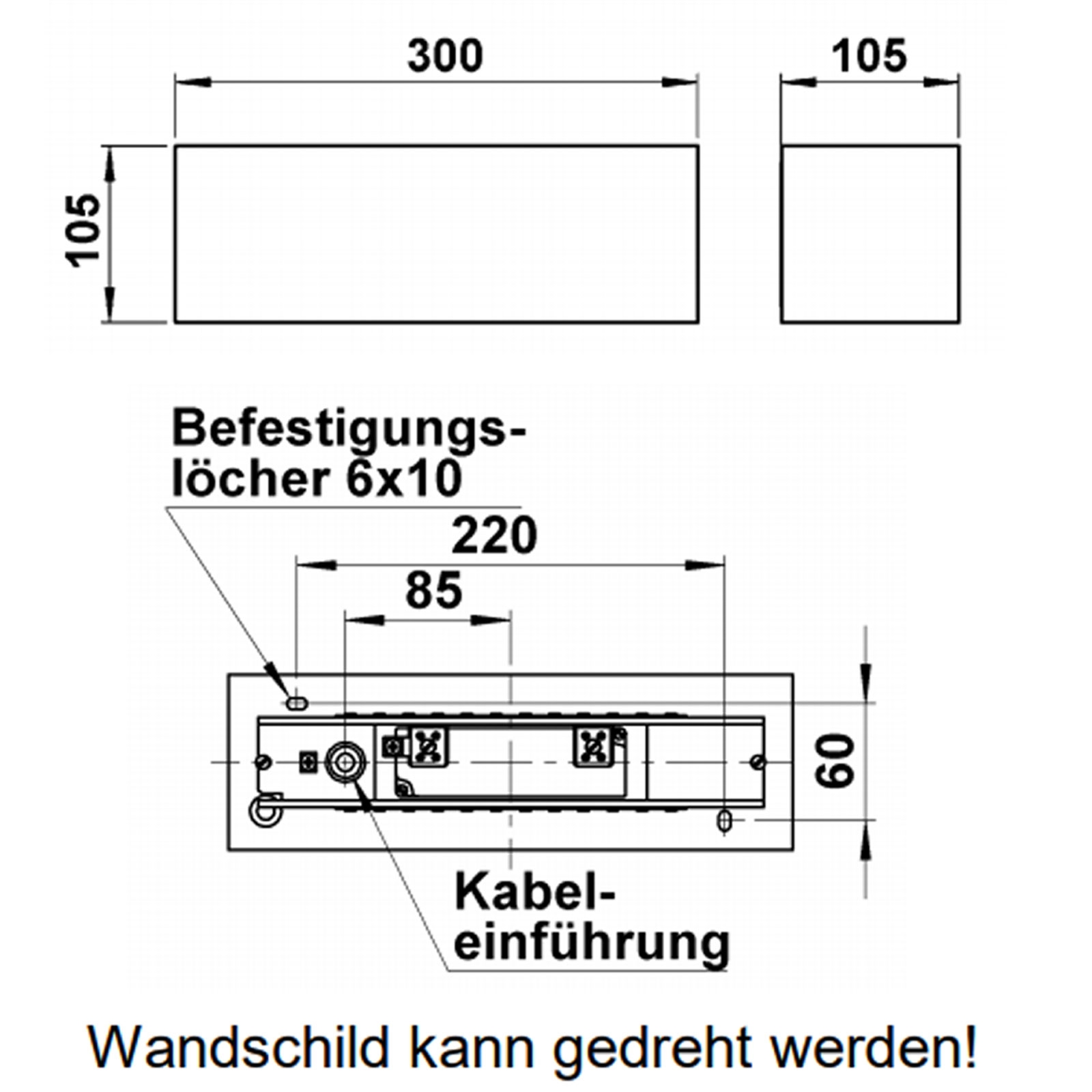

- Wall plate with 2 fixing holes 6x10 mm, vertical spacing 60mm, horizontal spacing 220mm, cable entry with cable grommet for connection cable max. 1.5mm², connection terminal 2x2.5mm².
- CE mark of conformity.
- Manufactured by Gebrüder Albert GmbH & Co KG Leuchtenfabrik - Quality Made in Germany (Fröndenberg).
Installation:
The national and international electronic safety regulations must be observed for the installation and operation of this luminaire. Loosen the wall plate from the luminaire fitting using the four hexagon socket set screws, pull the mains connection cable through the existing cable grommet and screw the wall plate to the mounting base. Establish the protective conductor connection and electrical connection to the terminal. Fix the luminaire fitting over the wall plate and tighten it against the wall plate using the four hexagon socket set screws.
| Illuminants: | 2x LED, 7,8 Watt |
|---|---|
| Material: | Aluminium AlMg3 W19, Stainless steel V2A 1.4301 |
| Protection class: | I |
| Protection type: | IP44 |
| Width in mm: | 150 |
|---|---|
| Height in mm: | 105 |
| Depth in mm: | 105,0 |
| Delivery condition: | Supplied fully assembled |
| Shipping information: | Depending on the order volume, delivery will be by parcel post or bulky goods. Partial deliveries are possible for dismountable products (e.g. stand mailboxes can be shipped separately). |
