- After placing your order, you will receive a design drawing by email as a PDF so that we can realise your wishes down to the last detail. Your wishes will be considered in detail.
Can't find anything suitable? Configure your letterbox individually!

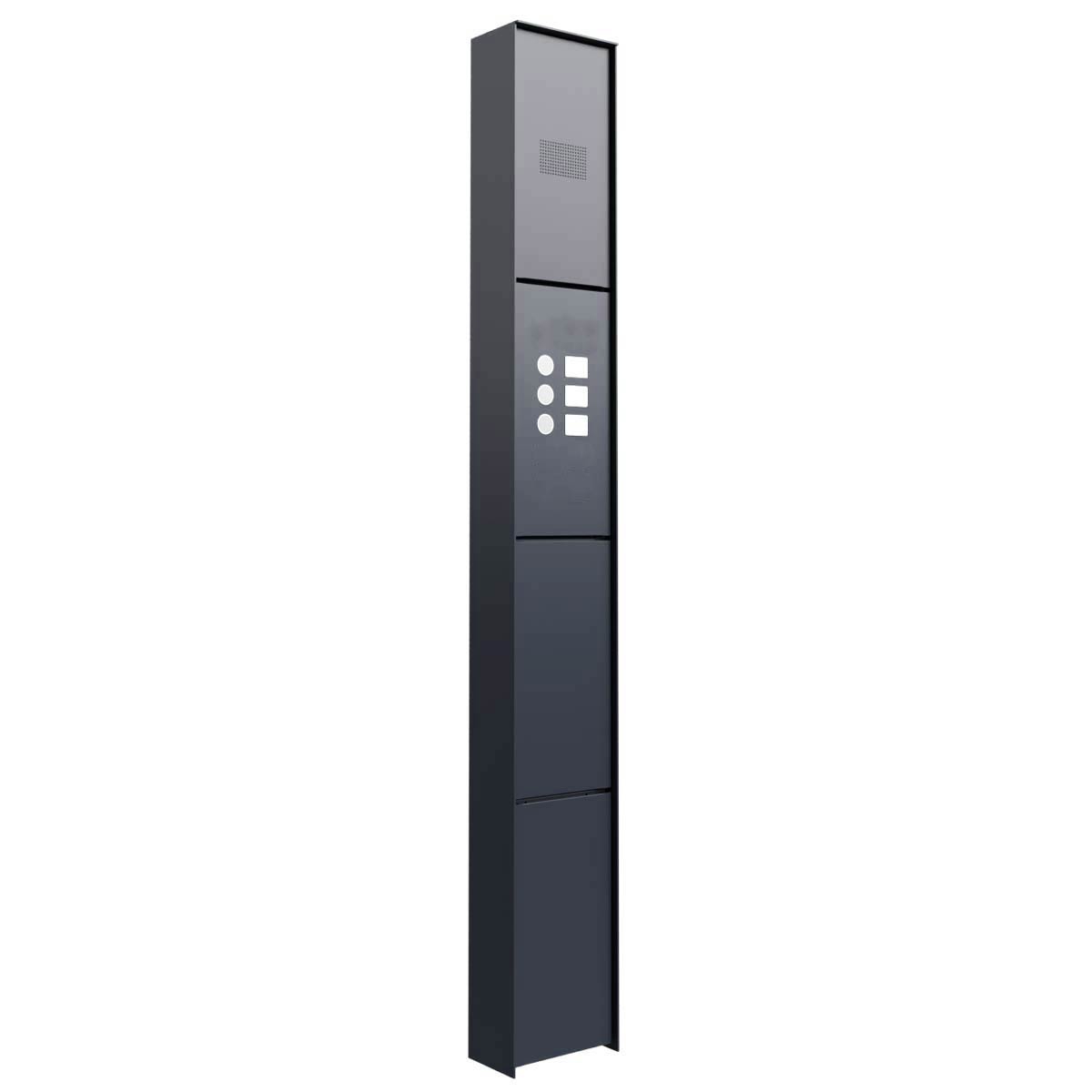

Design doorbell pillar GOETHE 200x1600 - RAL of your choice
The modern GOETHE doorbell pillar is ideal for demanding areas. The linear design makes this doorbell pillar look particularly elegant.
Thanks to the 3 mm side cladding with rain cover and the rear panel with base plate made of 6 mm aluminium, this doorbell pillar is absolutely weatherproof and perfectly suited for outdoor use. The bell pillar is available with 1-6 bell buttons. An intercom hole, camera and house number can be prepared as an option.
The doorbell pedestals in the GOETHE collection are characterised by the consistent use of stainless steel and aluminium. The result is a very long service life and sustainability. The design has been developed by our own engineers with a view to high flexibility and modularity, simple spare parts assembly and uncomplicated self-assembly. Spare parts for all GOETHE systems are available directly in our shop.
Thanks to the design, self-assembly is uncomplicated.
Protected utility model according to DPMA file number DE: 20 2021 101 679.5
- High-quality doorbell pillar made of stainless steel and aluminium.
- Quality production - Made in Germany by Briefkasten Manufaktur Lippe.
- 4x body (WxHxD 200 x 400 x 100 mm) made of stainless steel 1.4016 (non-rusting magnetic stainless steel), powder-coated in RAL of your choice.
- Functional boxes can be opened from top to bottom. Non-visible fixing with screws.
- House number approx. 70mm high (max. 3 digits) with energy-saving LED lighting 12V DC approx. 50mA / 1W, white.
- Replaceable Plexiglas nameplate, optionally illuminated.
- The inscriptions on the name plates can be changed from the front as required.
- Incl. EVN LED power supply unit / transformer IP65 12V/DC 0.1-4W for LED lighting (house number and nameplate if selected).
- 8-12V DC short-stroke bell push-button with white LED ring lighting.
- An 8-12V DC short-stroke light push-button with pictogram is available as an option.
- Preparation (built-in loudspeaker not included) for intercom system possible.
- Optionally with universal adapter for all commercially available built-in loudspeakers.
- Optional preparation (camera not included in scope of delivery) for a camera.
- Optimum rain protection thanks to rain guard edges and a rain canopy made of 3 mm aluminium AlMg3 W19, powder-coated in RAL of your choice.
- Side panelling made of 3mm aluminium AlMg3 W19, powder-coated in RAL of your choice.
- Rear panel and base plate made of 6mm aluminium AlMg3 W19, powder-coated in RAL of your choice.
- Invisible mounting in the doorbell pillar thanks to reinforced base plate.
Important information
Camera or call station preparation
We recommend that the electrical installation is always carried out by an electrician.
We offer the preparation of cameras and intercoms from various manufacturers for our letterboxes. The preparation does not include any end devices, but only the provision of screw mounts, drill holes and perforations. This means that you can install your end device without any problems.
| Material: | Aluminium AlMg3 W19, Stainless steel 1.4016 (non-rusting magnetic stainless steel), Stainless steel V2A 1.4301 |
|---|---|
| Number of bell push buttons: | 3 buttons |
Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de
| Height of single box in mm: | 400,0 |
|---|---|
| Width of single box in mm: | 200,0 |
| Overall height in mm: | 1617,0 |
| Total width in mm: | 208,0 |
| Depth in mm: | 100.0 + 25.0 Rain roof |
| Weight in kg: | 28 |
| Delivery condition: | Delivery is assembled |
| Shipping information: | Delivery by haulage company on a one-way pallet. Before delivery, the forwarding agent will contact you by telephone to arrange an appointment. |
Is the GOETHE system sustainable?
The revolutionary GOETHE system from Briefkasten Manufaktur redefines sustainability in product design. Every element of this system is interchangeable, creating a durable solution that will last a lifetime. This approach creates unique possibilities and raises the product far above the market standard.
With the GOETHE system, we are setting a milestone in sustainable product development. Our commitment to environmental protection and longevity is reflected in this innovative concept. By minimising the need to throw away, we reduce the waste of resources and contribute to a sustainable future.
Is the GOETHE® collection available in the configurator?
The GOETHE® doorbells are available in all mounting variants offered by Briefkasten Manufaktur. In the wall-mounted version, the flush-mounted and surface-mounted installation variants are possible. In the free-standing version, the mounting variants pedestal or free-standing elements are possible. All variants can be created in the letterbox configurator.
