€544.00*
Delivery time 8-10 business days
COMELIT intercom set 1-12 users with door station 6750W + audio loudspeaker 1621 + 2-wire power supply 1210
COMELIT intercom sets are simply connected using 2-wire technology. This means that the existing wiring can be used and there are no additional costs for new wiring and plastering or painting work. Simply lay 2 wires from the new power supply unit in the meter cupboard to the built-in loudspeaker in the function box of the letterbox system and 2 wires from the power supply unit to the door station in the flat. DONE.
++ Ideal for remodelling and renovation, as existing doorbell cables are used
++ No additional work for plastering and painting
++ low costs due to simple installation
++ simple commissioning

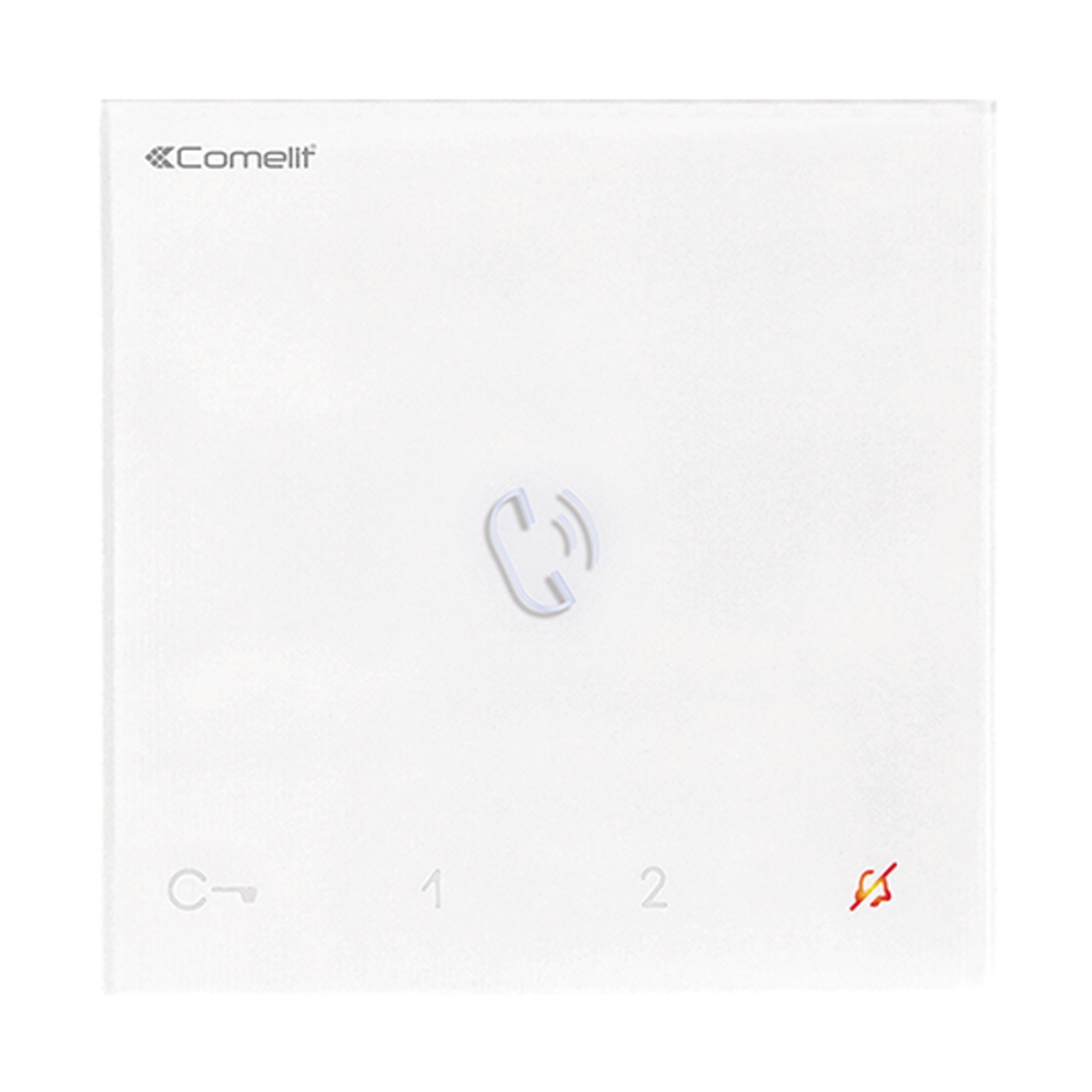

Door station 6750W
Mini Audio Handsfree with hands-free function is available in the version for surface mounting and has numerous functions such as a door release button, setting the ring tone volume and ring tone switch-off with red LED display when the function is active. Mini Audio Handfree can be used to switch relays optionally connected to the system or for internal communication. Dimensions: 140 mm x 140 mm x 20 mm (WD)

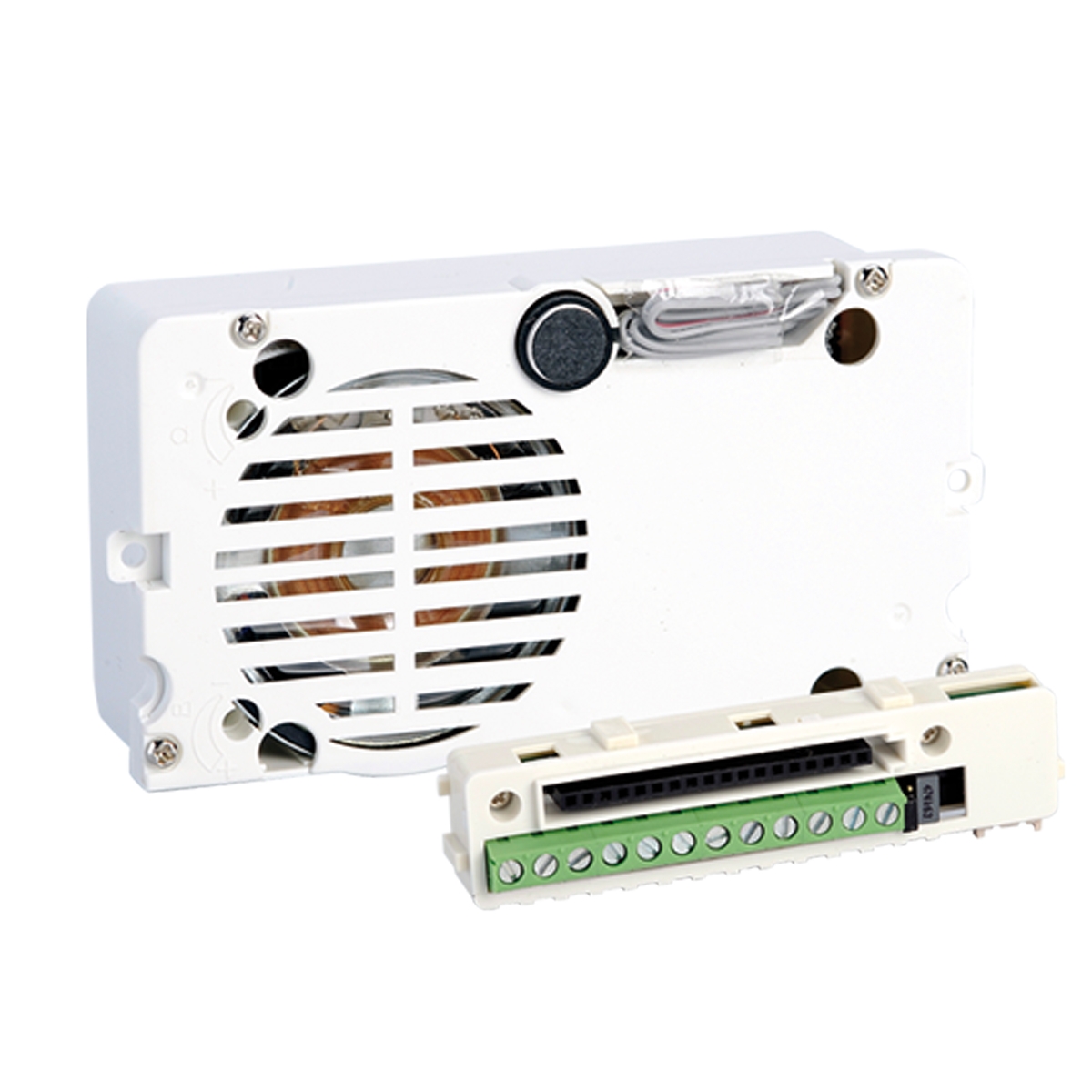

Audio loudspeaker 1621
Loudspeaker unit for 2-wire system with terminal block and speech connection with echo cancellation, dustproof and waterproof loudspeaker, electret microphone and adjustable loudspeaker volume on the front. Microprocessor and DIP switch with 8 positions for programming subscriber addresses. Integrated electronic door release function (3 A) and additional relay contacts C, NC, NO with 10 A. Time-switched door opener input and "Door open" display. Dimensions: 102 x 55 x 38 mm (WD)

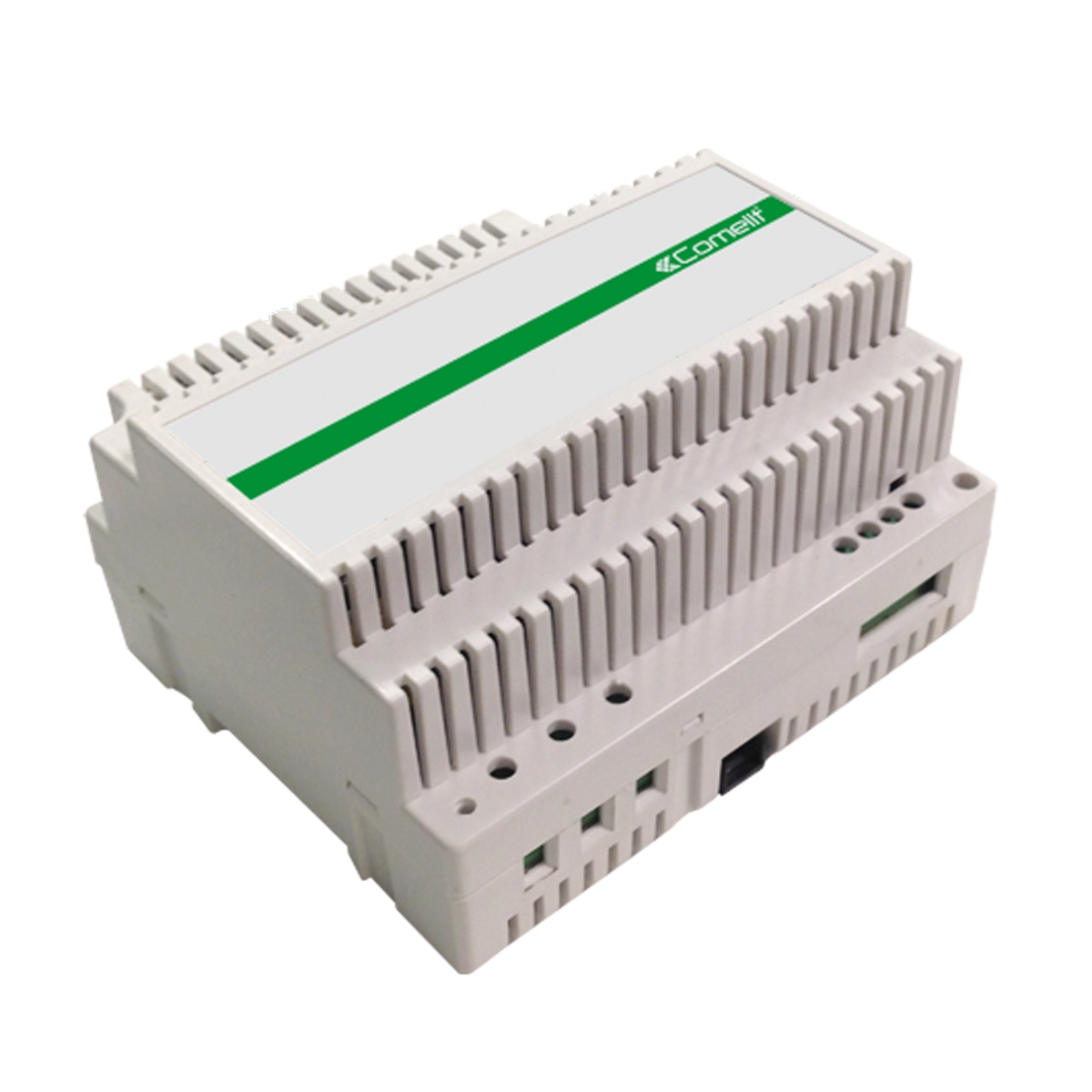

2-wire power supply unit 1210
Power supply unit with toroidal transformer, overload and short-circuit protection for the 2-wire system (SB2) for supplying the external call station (L1-L1) and the riser line (L2-L2). Equipped with a terminal for line termination Art. 1216. Input voltage 110-240V AC. Dimensions: 141 x 89 x 62 mm (WD) (8 DIN modules)
Push-button interface 3063D
Bell push control module. Allows the control of 8 buttons. From 8 home stations, this set contains an additional 3063D. Dimensions: 45 x 55 x 30 mm (WD)Installation bracket for loudspeaker series SWITCH 16xx, 46xx, SB, SB2, VIP
Required for installation in our DESIGNER letterbox systems "COMELIT video loudspeaker 4681/1621 prepared".
Important information
Camera or call station preparation
The intercom systems must be connected by an electrician. Contact your trusted electrician for planning, fitting and installation.
| Connection technology: | 2-wire |
|---|
